Removal
1. Remove the rear brake disc.
2. Loosen the parking brake cables.
3. Disconnect the return spring 5 (see figure 9.12).

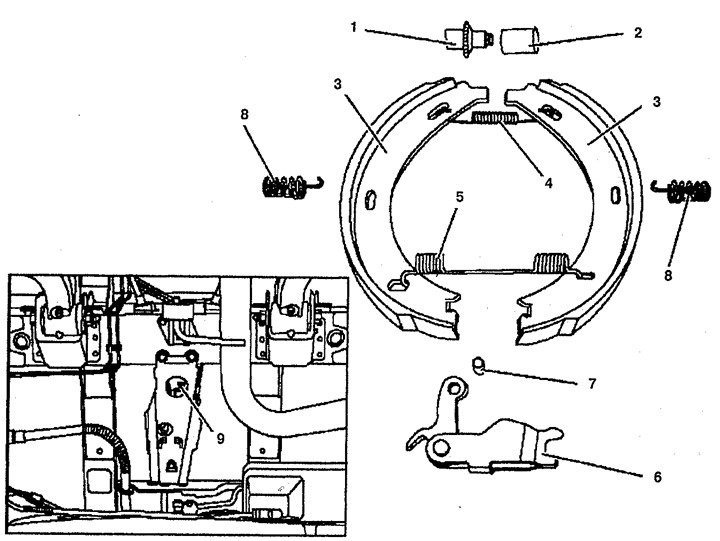

Figure 9.12. Brake shoes of the parking brake system:
1. Knurled adjusting bolt,
2. Bushing,
3. Brake pads,
4, 5. Return spring,
6. Castle,
7. Finger,
8. Compression spring,
9. Adjusting bolt.
4. Disconnect the compression springs 8.
5. Disconnect the brake shoes 3 with the knurled bolt 1 and return spring 4.
6. Disconnect lock 6 from the drive cable.
Article was obtained from the portal: mercedesman
7. Check the condition of the brake linings.
- Permissible wear of the brake linings of the parking brake system: 3 mm.
Installation
8. Installation is carried out in the reverse order of removal. Adjust the parking brake system.
