Removal
1. Place the vehicle in the "Service Position".
2. Raise the car.
3. Loosen the rear cables 1 with the adjusting bolt 1 (see figure 9.15).

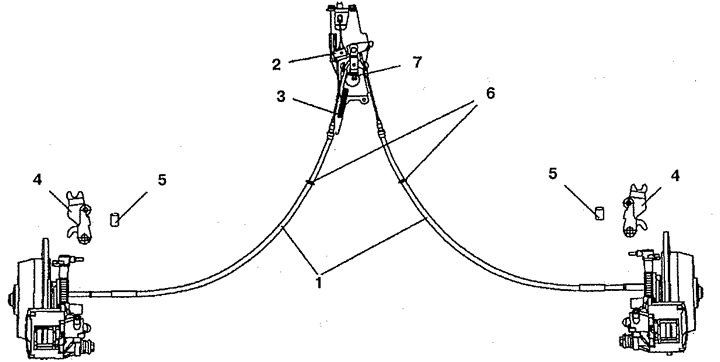

Figure 9.15. Rear parking brake drive cables:
1. Rear drive cables,
2. Return lever,
3. Return spring,
4. Operating lever,
5. Anchor bolt,
6. Cable guide bushings on the body,
7. Adjusting bolt.
4. Remove the parking brake shoes.
5. Disconnect the rear cables 1 from the automatic length compensator.
[Publication reprinted from this resource: MercedesMan.ru]
6. Disconnect the rear cables 1 from the guide on the body 6.
7. Disconnect anchor bolt 5 from operating lever 4 and remove the cable from the lower suspension arm.
Installation
8. Installation is carried out in the reverse order of removal. Adjust the parking brake system.
