Removal
1. Remove the flywheel.
2. Check for leaks.
3. Unscrew bolts 1 and 5 (see figure 2.31).

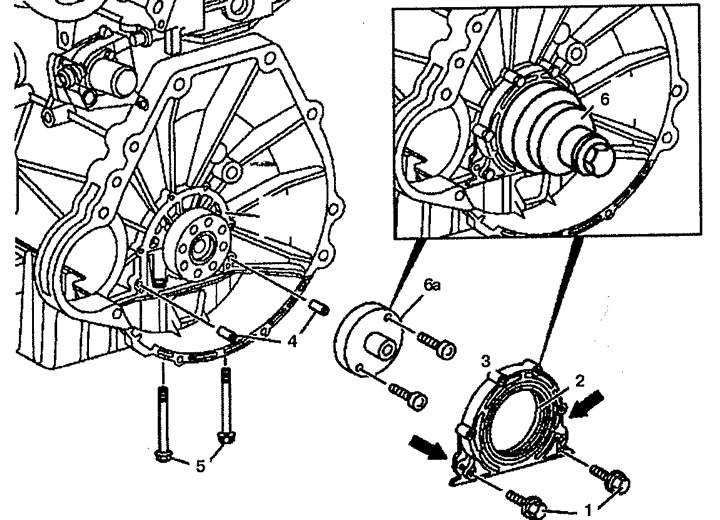

Figure 2.31. Crankshaft rear oil seal cover:
1. Bolt with gasket,
2. Seal,
3. Lid,
4. Guide fingers,
5. Bolts,
6, 7. Additional installation tools.
4. Press out the rear oil seal cover 3 and oil seal 2 (arrows). Do not damage the pan gasket.
5. Check the condition of the crankshaft oil seal 2. Replace it if necessary.
Installation
6. Installation is carried out in the reverse order of removal.
