Removal
1. Disconnect connector 1 from the air flow sensor (see figure 3.48).

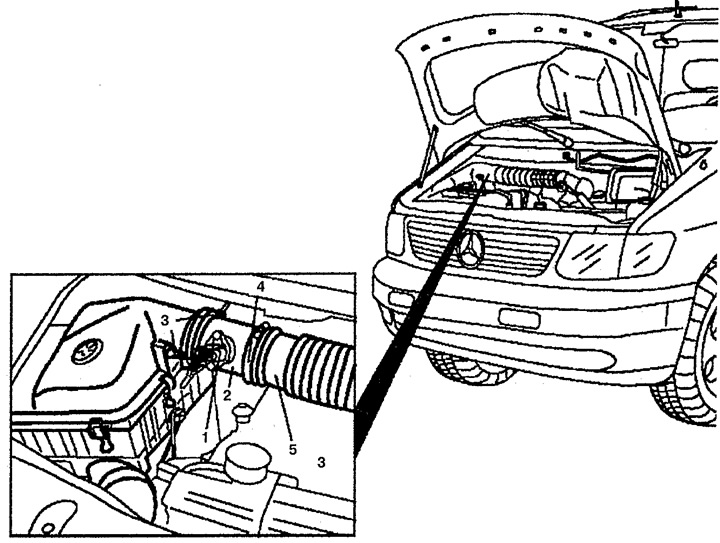

Figure 3.48. Mass air flow sensor:
1. Wiring connector,
2. Mass air flow sensor,
3, 4. Clamp,
5. Air intake pipe.
2. Loosen clamps 3 securing air flow sensor 2 to the air filter.
3. Remove clamp 4 securing air flow sensor 2 to air intake pipe 5.
4. Remove the air flow sensor 2.
Installation
5. Installation is carried out in the reverse order of removal.
