Removal
1. Remove the mass air flow sensor.
2. Disconnect the accelerator pedal cable 1 (see figure 3.44).

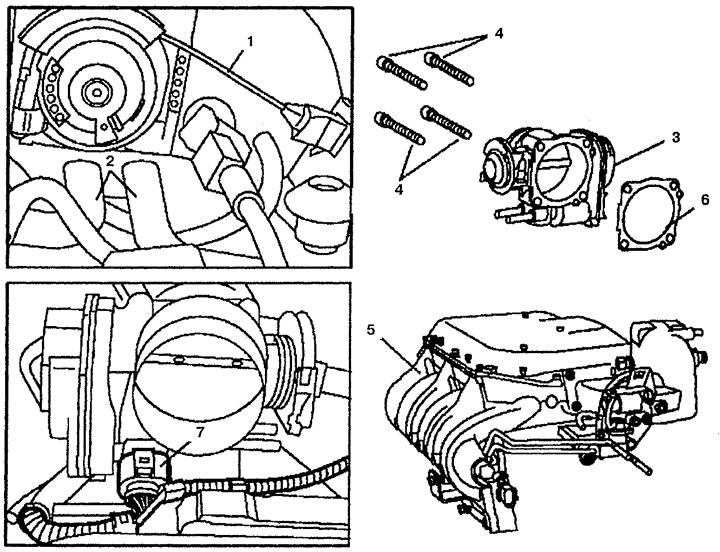

Figure 3.44. Throttle body:
1. Accelerator pedal cable,
2. Cooling system pipes,
3. Throttle body,
4. Bolt,
5. Intake manifold,
6. Gasket,
7. Wiring connector.
3. Disconnect the cooling system pipes 2 from the throttle body 3.
4. Disconnect connector 7 from throttle body 3.
5. Unscrew bolts 4 securing throttle body 3 to intake manifold 5.
Installation
6. Installation is carried out in the reverse order of removal. Replace gasket 6.
