Attention! Always replace all pads on one axle of the vehicle, even if only one pad has reached the wear limit. If the pads are to be reinstalled, they must be marked before removal.
Warning! When brake pads are in operation, brake dust is formed, which contains asbestos, which is harmful to health. Therefore, when cleaning brake pads, do not use compressed air and do not inhale the dust.

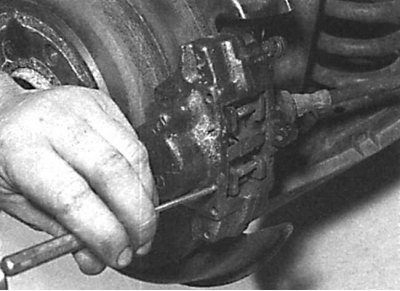

Using a hammer and appropriate drift to remove the rear brake shoe mounting pins

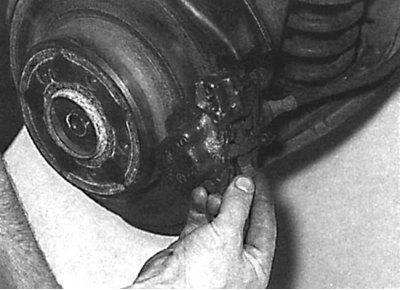

Removal the spring from the caliper that presses the brake pads

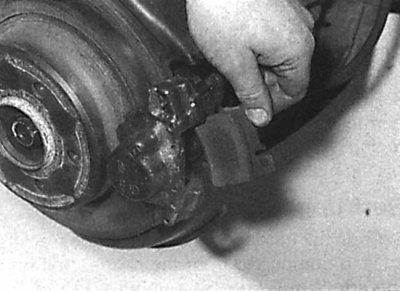

Removal the rear brake pads
The rear brake pads are replaced in the same way as the brake pads on models with a fixed caliper with two pistons. Please note that the rear brake pad wear sensors are only installed on models with the automatic speed control (ASR) system (see fig. Using a hammer and appropriate punch to remove the rear brake pad mounting pins, Removing the brake pad spring from the caliper).
