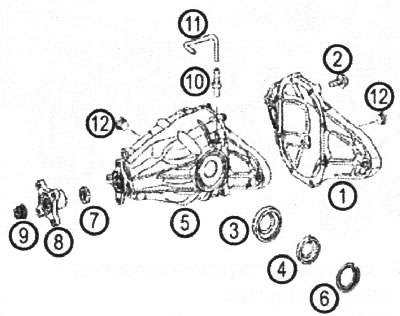

Components of the rear axle final drive gearbox (Mercedes-Benz Vito W639)

VN 4.036 1. Lid; 2. Screw M10x35 mm; 3. Protective ring; 4. Sealing ring; 5. Gearbox housing; 6. Right overlay; 7. Sealing ring; 8. Flange; 9. Nut; 10. Branch pipe; 11. Ventilation hose; 12. Gearbox mounting screw plug
