Removal
1. Disconnect the negative cable from the battery.
2. Remove the steering wheel.
3. Remove the fuse box.
4. Disconnect the vacuum tube from the ignition switch 3 (see figure 8.4).

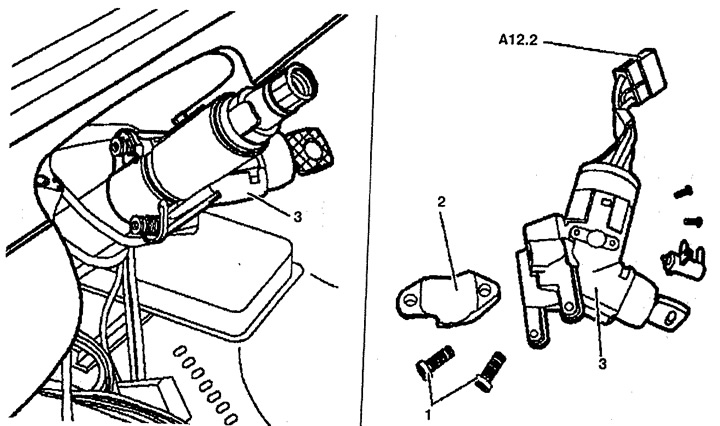

Figure 8.4. Ignition switch:
1. Bolts,
2. Clamp,
3. Ignition switch,
A12.2. Wiring connector.
5. Knock out bolt 1 on clamp 2 using a chisel and remove ignition switch 3.
Installation
6. Installation is carried out in the reverse order of removal. Replace bolts 1.
