Removing

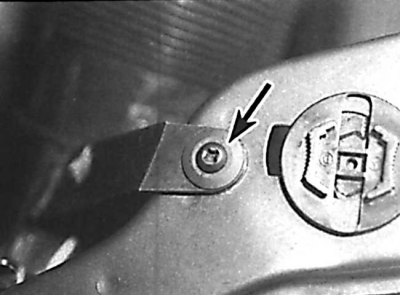

The location of the screw securing the air intake

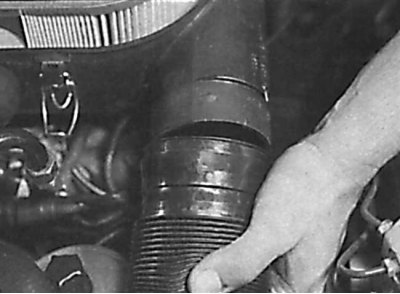

Removing the air intake pipe from the air filter housing

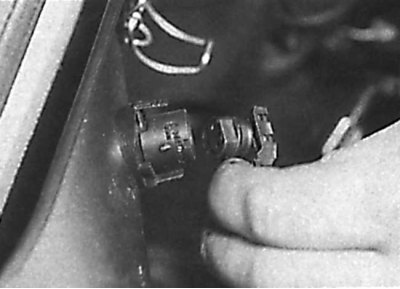

Disconnecting the electrical connector from the engine air temperature sensor

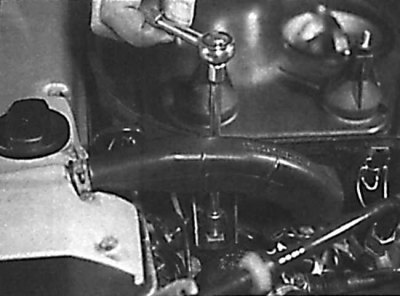

Unscrewing the nuts securing the lower part of the air filter casing

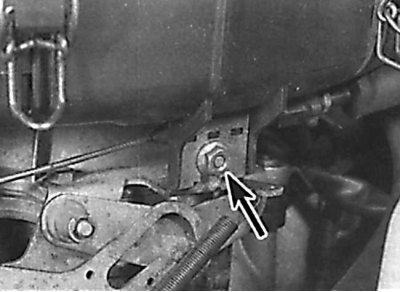

Arrangement of a nut of lateral fastening of a casing of the air filter

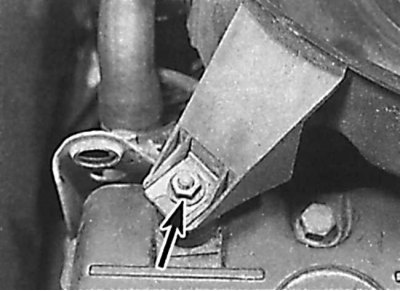

Arrangement of a nut of back fastening of a casing of the air filter

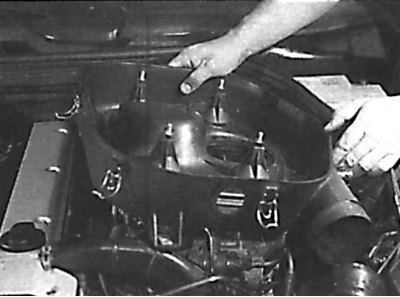

Removing the lower part of the air filter housing
1. Unscrew the screw securing the air intake and remove the air intake pipe from the air filter housing (see fig. The location of the screw that secures the air intake, Removing the air intake pipe from the air filter housing).
2. Remove the crankcase ventilation hose from the side of the air filter.
3. Switch off the ignition and disconnect the electrical connector from the temperature sensor, entering the engine air and located on the air filter housing (see fig. Disconnecting the electrical connector from the engine air temperature sensor).
4. Remove the nuts securing the air filter housing to the fuel distributor and intake manifold (see fig. Unscrewing the nuts securing the lower part of the air filter housing, Location of the side mounting nut of the air filter housing, Location of the rear mounting nut of the air filter housing).
5. Unscrew the nuts and release the spring clips securing the air filter cover, and then remove the filter element from the air filter housing. Unscrew the nuts and screws and remove the lower part of the air filter housing (see fig. Removing the lower part of the air filter housing). Remove the rubber pad.
Installation

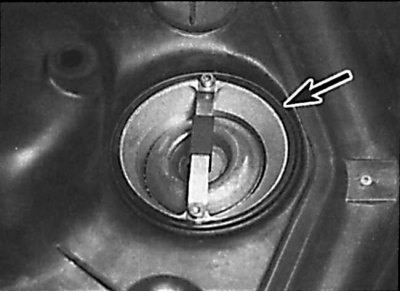

The location of the rubber seal between the air filter housing and the fuel line
1. Installation is made in sequence, return to removal. Check the correct installation of the rubber seal between the air filter housing and the fuel line (see fig. The location of the rubber seal between the air filter housing and the fuel line).
