Removal
1. Remove the alternator drive belt 1 (see figure 5.32).

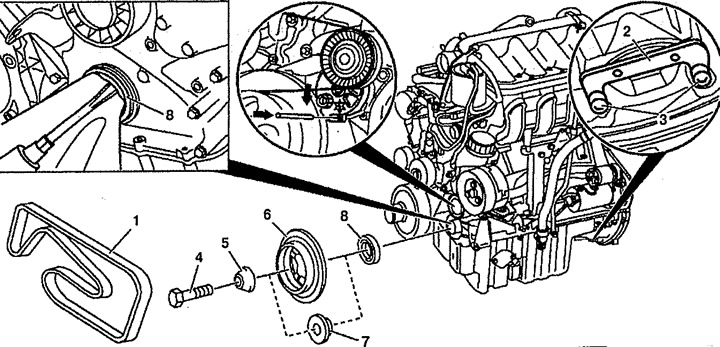

Figure 5.32. Front crankshaft oil seal:
1. Generator drive belt,
2. Flywheel lock,
3. Bolts for fixing the clamp,
4. Bolt,
5. Gasket,
6. Groove pulley of the crankshaft,
7. Screwdriver,
8. Seal.
2. Lock the flywheel with lock 2.
3. Remove the crankshaft groove pulley 6.
4. Using a screwdriver, remove the front oil seal 8. Be careful not to damage the crankshaft or the mounting hole for the oil seal.
Installation
5. Installation is carried out in the reverse order of removal. Before installation, seal 8 must be lubricated.
