Removal
1. Remove the crankshaft groove pulley.
2. Using a screwdriver, remove the seal 2 outward (see figure 4.28).

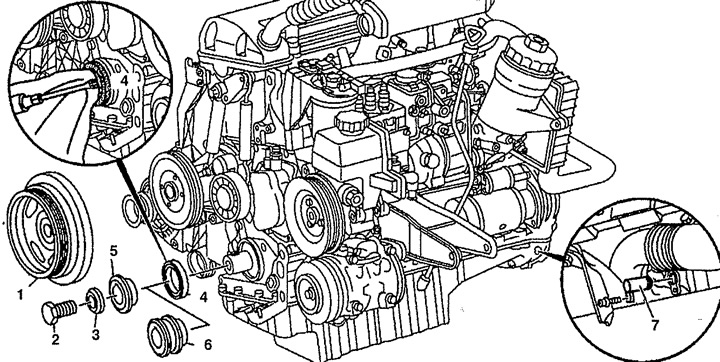

Figure 4.28. Front crankshaft oil seal:
1. Groove pulley of the crankshaft,
2. Central bolt,
3. Gasket,
4. Seal,
5, 6. Bushings,
7. Flywheel ring gear locking device.
Installation
3. Install the oil seal on the crankshaft.
(Publication reprinted from this resource: MercedesMAN)
4. Install the crankshaft groove pulley.
