Sequence of work
1. The headlight range adjustment control must be in position «0».
2. The adjusting screws are located in the engine compartment.
3. Turn on the ignition and low beam.

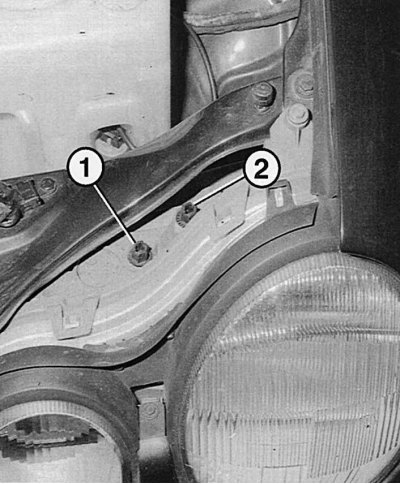

Pic. 9.23. Headlight adjustment screws: 1 - side adjustment screw; 2 - height adjustment screw
4. First by turning the height adjustment screw (closer to the outer side of the car) ensure that the light spot of the low beam with its horizontal border of light-shadow coincides with the line E (pic. 9.23).
5. Turning the side adjustment screw (closer to the inside of the car) achieve that the point of a break of a light spot of a passing beam of headlights fell exactly under adjusting crosses. In this case, the kink beam can be located 15% above the line.
6. When adjusting, the main beam is also automatically set.
