Sequence of work
Rear light unit in the body
1. Open the trunk or tailgate (station wagon).
2. Open the upholstered lamp cover on the side. On the T-model, take out the spare wheel together with the covers (left) or first aid kit.
3. From the inside, unscrew the three nuts around the perimeter of the lantern.
4. Carefully, together with the seal, remove the lamp from the outside of the hole in the body and disconnect the connector.

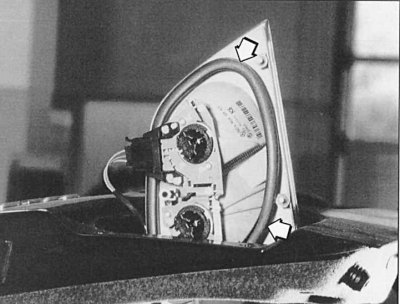

Pic. 9.26. Before installing the rear light, clean the seat on the body and replace with a new worn seal (arrows)
5. Before installation, clean the seat on the body and, if the seal is worn, replace it with a new one (pic. 9.26).
Rear light unit in trunk lid/tailgate
1. Open the trunk or tailgate (station wagon).
2. Remove plugs of a back lantern in an upholstery of a luggage carrier or a door.
3. Remove fasteners around the perimeter and disconnect the connector.
4. Carefully remove the lamp from the outside of the trunk lid or tailgate.
