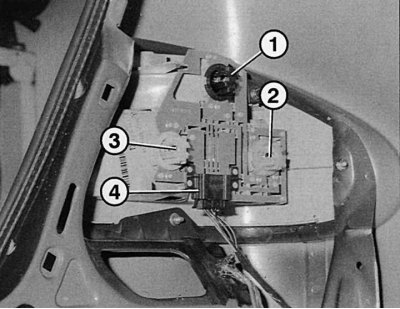

Fig. 9.24. Disassembled rear light in the rear wing: 1 – direction indicator; 2 – brake light/side light/parking light; 3 – side/parking light; 4 – plug connector
When replacing the rear fog lights and the reversing light located in the trunk lid (Fig. 9.24), follow paragraphs 2–4.
Sequence of works
1. Open the trunk, open the plug in the trunk trim that covers the rear light.

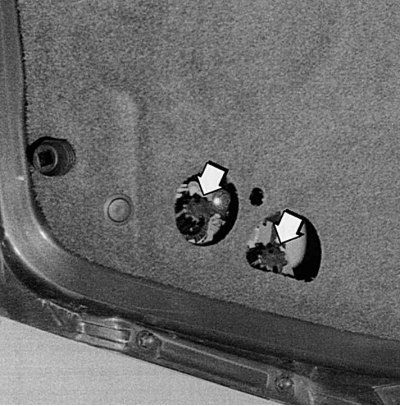

Fig. 9.25. To replace a faulty reversing light bulb or rear fog lights, turn the socket (arrows) counterclockwise (to the left) and remove it from the light housing
2. Turn the lamp holder counterclockwise (to the left) and remove it from the flashlight housing (Fig. 9.25).
3. Press the bulb in the socket down a little, turn to the left (counterclockwise) and remove it from the socket.
4. When installing, make sure that the chuck engages clearly when turned clockwise (to the right).
