Sequence of works
In front
1. Pry up the triangular protective grille from the outside with a 1–2 cm wide wooden or plastic object.
2. Disconnect the speaker connector.
3. Disengage the speaker by sliding it towards the side glass frame.
Behind
4. Remove the rear seat cushion.
5. Remove the rear seat back completely.
6. Remove the rear pillar trim on both sides.
7. Remove the rear shelf.
8. Disconnect the speaker connectors.
9. Disconnect the speaker housings (from the trunk).
10. Press the speaker mounting clips and remove the speakers.

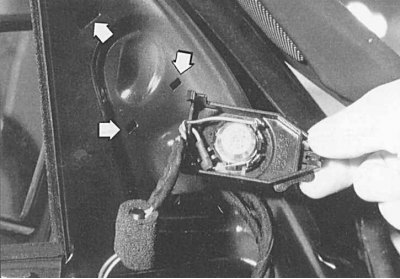

Fig. 10.15. When reinstalling, the high-frequency speaker must be inserted into the holes shown by the arrows
In the front and rear doors

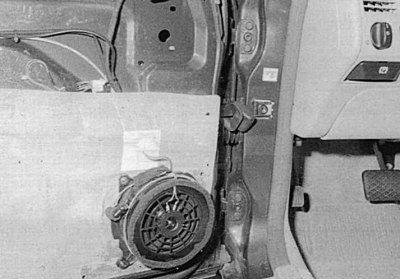

Fig. 10.16. Position of the speaker in the front door. After removing the door trim, dismantling the speaker is easy
11. Remove the upholstery (fig. 10.16) doors (see "Body").
12. Disconnect the wiring connectors.
13. Unscrew the speaker fasteners around the perimeter.
