Sequence of works
1. Replace the mirror glass as described below: First press the mirror glass from the inside forward.

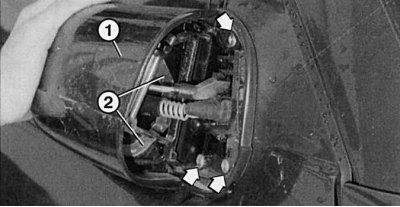

Fig. 10.11. To access the spring clip (2) for fastening the housing (1), fold the mirror back. The assembled mirror is secured to the door with three bolts (arrows)
2. Fold the mirror and use a screwdriver to slightly push the spring clip 2 outward (fig. 10.11), holding the mirror housing.
3. Remove the mirror housing.

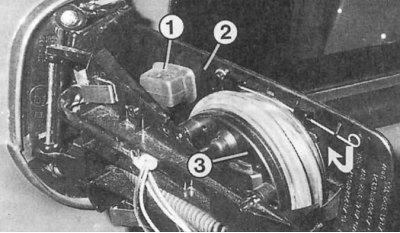

Fig. 10.12. Rear-view mirror with housing removed: 1 – mirror heater contact; 2 – mirror glass; 3 – electric motor of adjustment drive. To replace the mirror glass, release the spring (arrow)
4. Disengage the spring from the top side of the glass 2 (fig. 10.12) mirrors.
5. Disconnect the wires going to the mirror heater.
