Sequence of works

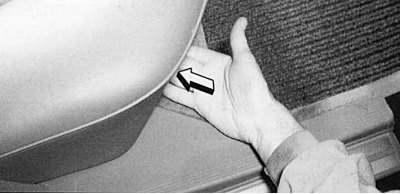

Fig. 10.28. To remove the rear seat cushion, press the slightly recessed inward latches (arrow) on the right and left
1. Press the retaining springs on both sides of the front of the cushion (fig. 10.28).

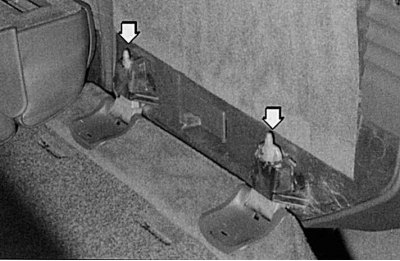

Fig. 10.29. On the T-model (station wagon), the rear seat cushion must be removed from the hinges (arrows)
(Text republished from the website: mercedesman.ru)
2. Remove the cushion. On the T-model (station wagon), the rear seat cushion must be removed from its hinges (fig. 10.29).
3. On the non-folding rear seatback, remove the three bolts on the lower edge.
4. Lift the backrest up and remove it.
5. When reinstalling, ensure that the seat belts are positioned correctly.
6. Loosen the fasteners at the bottom of the folding rear seat back.
