Warning triangle and first aid kit
The warning triangle is located in the storage compartment in the left front door.

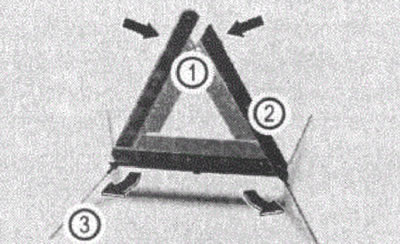

Figure 66
1. Supports
2. Side reflectors
3.Button
First aid kit
The first aid kit is located in the storage compartment under the front passenger seat.
Check the expiration date of your first aid kit regularly and change the contents if necessary.
Fire extinguisher
The fire extinguisher is located on the right side, next to the base of the seat on the floor.

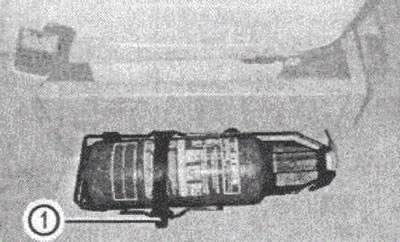

Figure 67
1. Fixing tourniquet
CD changer
The CO changer is located under the front passenger seat.
You can get it from the rear of the cabin.
For more detailed information, please refer to the separate "Operating Manual" for your audio system.
On-board tool kit
An additional storage compartment is located in the rear of the vehicle on the right side.

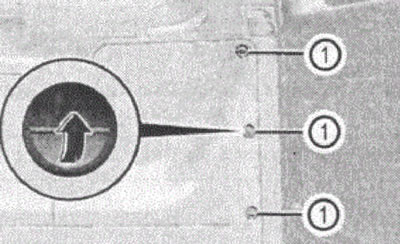

Figure 68
1. Rotary valve
In a short vehicle, fold the rear seat up.
Fold back the rotary valve handle 1 and turn it to the left. Open the side cover.
Unfasten the tie strap.
Remove the tool kit cover.
On-board tool kit

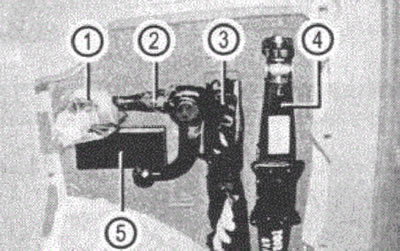

Figure 69
1. TIREFIT temporary tire repair kit
2. Ball head
3. On-board tool kit
4. Jack
5. Electric air pump
