Removing
1. Remove the refrigerant from the air conditioning system.
2. Remove generator G1 (see fig. 10.8).

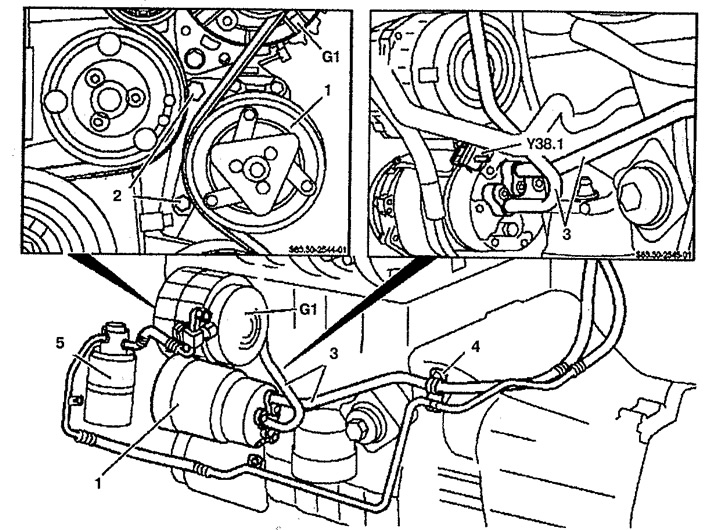

Pic. 10.8. Air conditioning compressor:
1. Compressor,
2, 4. Bolt,
3. Feeding tube,
5. Drain tube,
G1. Generator,
Y38.1. Wiring connector.
3. Disconnect connector Y38.1 from compressor 1.
4. Loosen the bolt 4 clamps for fastening the tube of the air conditioning system.
5. Disconnect pipes 3 connected to compressor 1.
6. Turn off bolts 2 fastenings of the compressor 1 to an arm.
7. Remove compressor 1 and replace tank 5.
Installation
8. Installation is made in an order, the return to removal.
