Removing
1. Remove the central cover 1 of the instrument panel (see fig.10.12).

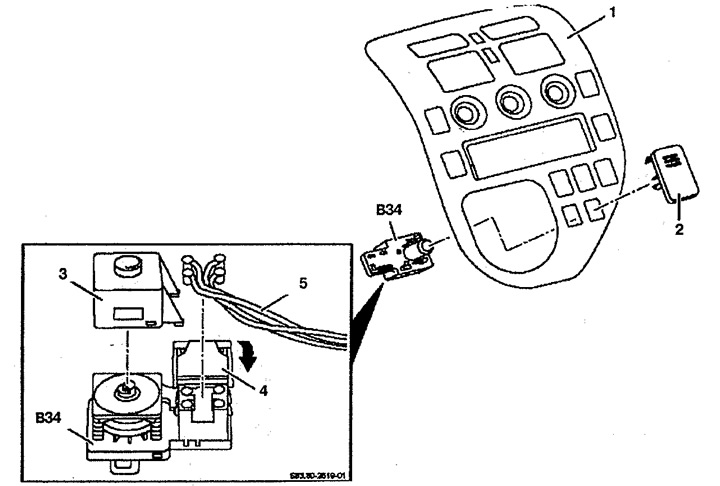

Pic. 10.12. Cabin air temperature sensor:
1. Central cover of the instrument panel,
2. Temperature sensor cover,
3. Body,
4. Lid,
5. Wiring connector,
B34. Cabin air temperature sensor.
2. Remove temperature sensor B34 from cover 2.
3. Remove housing 3 from sensor B34.
4. Open cover 4 on temperature sensor B34.
5. Disconnect the wiring connector from the B34 temperature sensor.
Installation
6. Installation is made in an order, the return to removal.
