Removal

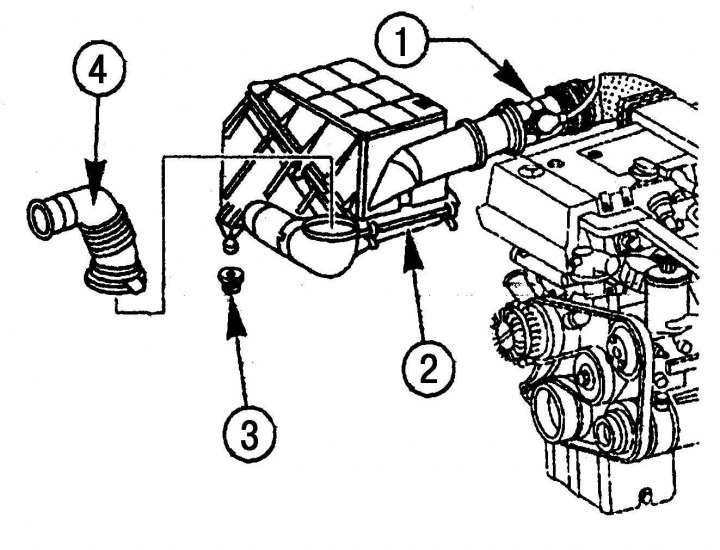

Fig. 5.51. Removing the air filter: 1 – mass air flow sensor; 2 – air filter; 3 – rubber support; 4 – air intake pipe
1. Remove mass air flow sensor 1 from air filter 2 (Fig. 5.51) by loosening the clamps on the air pipe.
2. Remove air intake pipe 4 from rubber supports 3.
Installation
3. Insert the air filter into the rubber supports 3.
4. Install air intake pipe 4.
5. Insert the MAF sensor with the sealing ring into the air duct and secure with a clamp.
