Block Mercedes-Benz

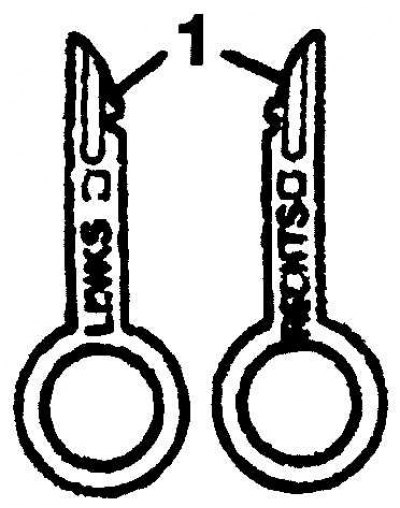

Special tools to be used to remove the Mercedes-Benz block on later models
2. On early models (until September 1990) release the lower latches and remove the radio from the socket and disconnect the electrical connectors and antenna from it.
3. On later models (since September 1990) Removing the radio requires the use of special tools (see fig. Special tools to be used to remove the Mercedes-Benz block on later models). Insert the special tools on both sides of the radio, release the bottom latches and remove the radio from its socket, then disconnect the electrical connectors and antenna from it.
4. Installation is made in sequence, return to removal.
Block Becker

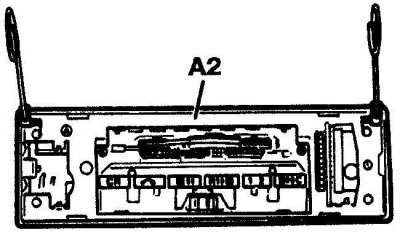

Using steel rods to remove the Becker block
2.Carefully remove the bezel from the radio.
3. On both sides of the radio, insert steel rods with a diameter of 1 mm into the holes, release the latches and remove the radio from the socket (see fig. Using steel rods to remove the Becker block). Disconnect from a radio receiver electric sockets and the antenna.
4. Installation is made in sequence, return to removal.
CD player
1. Remove the ground wire from the battery.
2. Remove the screws securing the CD player to the bracket, then remove it and disconnect the electrical connectors from it.
3. Remove the spare wheel, then unscrew the bolt and remove the CD player bracket.
4. Installation is made in sequence, return to removal.
Amplifier
1. Remove the ground wire from the battery. Remove the trim on the right side of the luggage compartment.
2. On Station wagon models, remove the protective cover to gain access to the amplifier.
3. Disconnect the electrical connectors from the amplifier, then unscrew the screws and remove the amplifier from the bracket.
4. Installation is made in sequence, return to removal.
