Loudspeakers located on the instrument panel

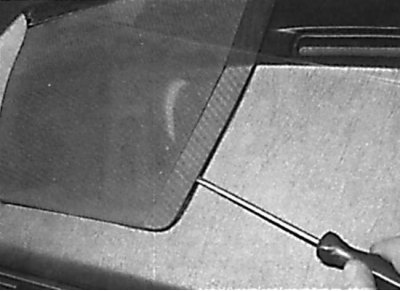

Removing the trim on the side of the loudspeaker grille

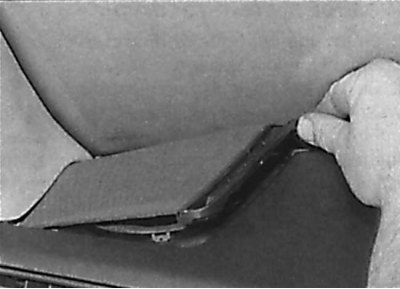

Removing the loudspeaker grille from the top of the instrument panel

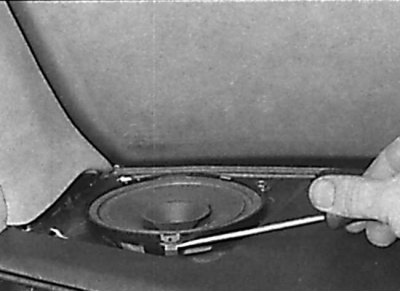

Loosening the clips securing the loudspeaker

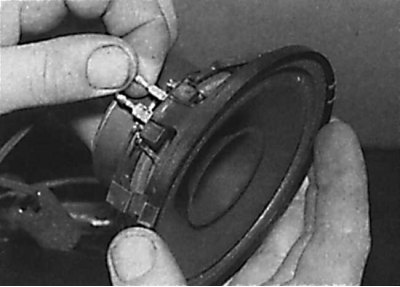

Disconnecting the electrical connectors from the loudspeaker
1. Remove the decorative trim located on the side of the speaker grille (see fig. Removing the trim on the side of the loudspeaker grille).
2. Unscrew the screws and remove the loudspeaker grille from the top of the instrument panel (see fig. Removing the loudspeaker grille from the top of the instrument panel).
3. Release the clips securing the loudspeaker, then remove the loudspeaker from the instrument panel and disconnect the electrical connectors from it (see fig. Loosening the clips securing the loudspeaker, Disconnecting the electrical connectors from the loudspeaker).
4. Installation is made in sequence, return to removal.
Loudspeaker located in the front door
1. Remove the door trim.
2. Unscrew fastening nuts, disconnect electric sockets and remove a loudspeaker from a door.
3. Installation is made in sequence, return to removal.
Speakers located on the rear shelf

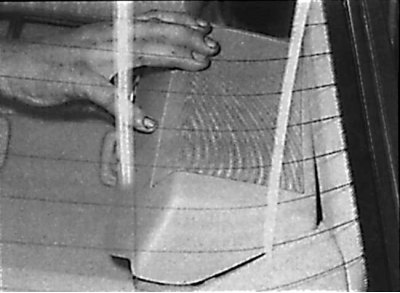

Removing the grille from the loudspeaker located on the rear shelf

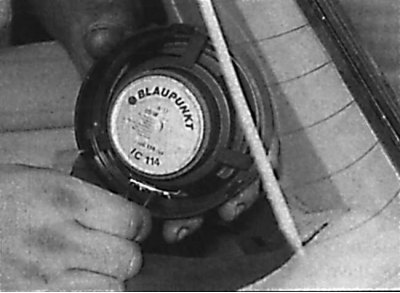

Disconnecting the electrical connectors from the speaker
1. Tilt the rear seatback forward and, being careful, use a screwdriver to remove the loudspeaker grille (see fig. Removing the grille from the loudspeaker located on the rear shelf).
2. Release the clips, lift the loudspeaker and disconnect the electrical connectors from it (see fig. Disconnecting the electrical connectors from the speaker).
3. Installation is made in sequence, return to removal.
Loudspeaker located on the rear door
1. Unscrew the screws and remove the loudspeaker grille from the door.
2. Loosen the screws and remove the speaker mounting plate.
3. Remove the loudspeaker from the door and disconnect the electrical connectors from it.
Attention! To improve access to the speaker connector, remove the ashtray.
4. Installation is made in sequence, return to removal.
