Sequence of works
1. Remove the rear exhaust system sections.
2. Place the spare muffler with pipes on top of the old one.
3. Place the joints of the end parts of the muffler so that the slots on the mating part are pushed in by 70–80 mm.

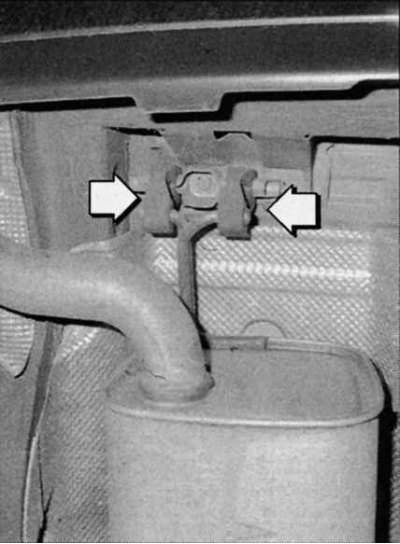

Fig. 4.106. Rubber suspension
4. When checking the rubber suspension (arrows) for wear, do not forget to check the rear muffler suspension (fig. 4.106). If the rubber is torn, then most of the exhaust system will be held only by the suspension at the front.
