Sequence of works

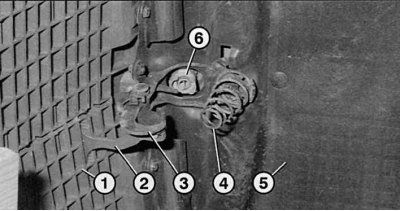

Fig. 11.5. Hood opening mechanism: 1 – radiator trim; 2 – opening lever; 3 – fixing hook; 4 – hood opening spring; 5 – hood; 6 - "Mercedes" emblem
1. Open the hood and unscrew the bolts from the inside on the radiator trim 1 (Fig. 11.5).

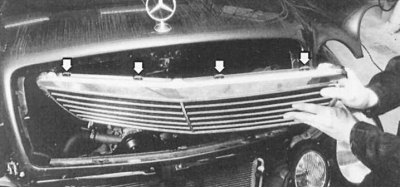

Fig. 11.6. To remove the plastic inner grille from the radiator grille frame, unfasten the fixing brackets (arrows) around the perimeter
(Article was obtained from the portal: MercedesMan.ru)
2. The plastic grille can be removed from the frame by pressing the fixing brackets (Fig. 11.6).
Fig. 11.7. The gasket should fit well on the hood
3. When reinstalling the radiator grille, ensure that the gasket fits snugly against the hood (Fig. 11.7).
