Removal

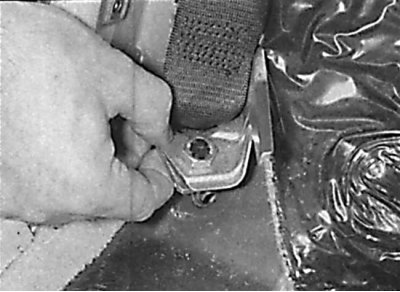

Removal the lower rear seat belt anchor

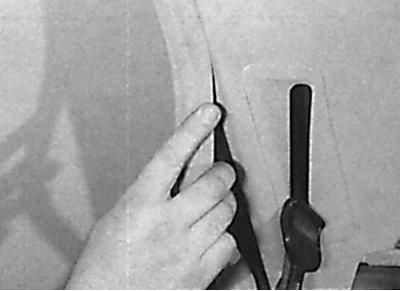

Removal the seal from the front side of the rear pillar trim panel

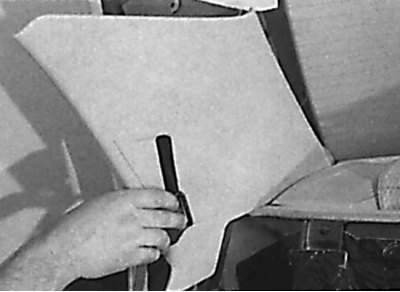

Removal the rear pillar trim panel

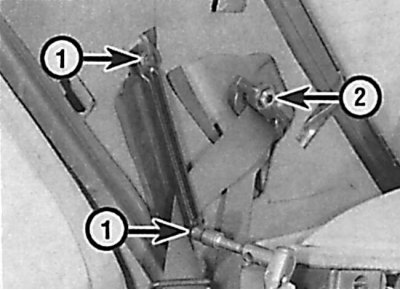

Location of guide mounting bolts (1) and upper seat belt mounting bolt (2)

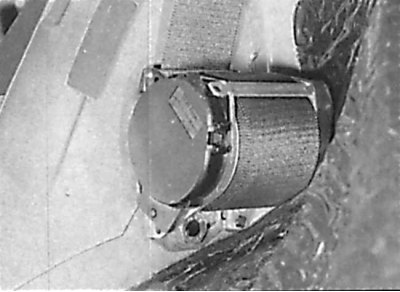

Rear seat belt inertia drum location
1. Remove the rear seat.
2. Unscrew the bolt and remove the lower seat belt mount (see Fig. Removing the lower rear seat belt mount).
3. Remove the seal from the front of the trim panel, then carefully pry the rear pillar trim panel away from the vehicle (see Fig. Removing the seal from the front side of the rear pillar trim panel, Removing the rear pillar trim panel).
4. Remove the bolts and seat belt guide, then remove the bolt and seat belt upper anchor (see Fig. Location of guide mounting bolts and upper seat belt mounting bolt).
5. Unscrew the inertia drum mounting bolt and remove the seat belt from the vehicle (see Fig. Location of the rear seat belt inertia drum).
Installation
1. Installation is performed in the reverse order of removal. Check the correct installation of the inertia drum and tighten all bolts securely.
