Automatic transmission 503.020/04 on vehicles with engine 104.900
0

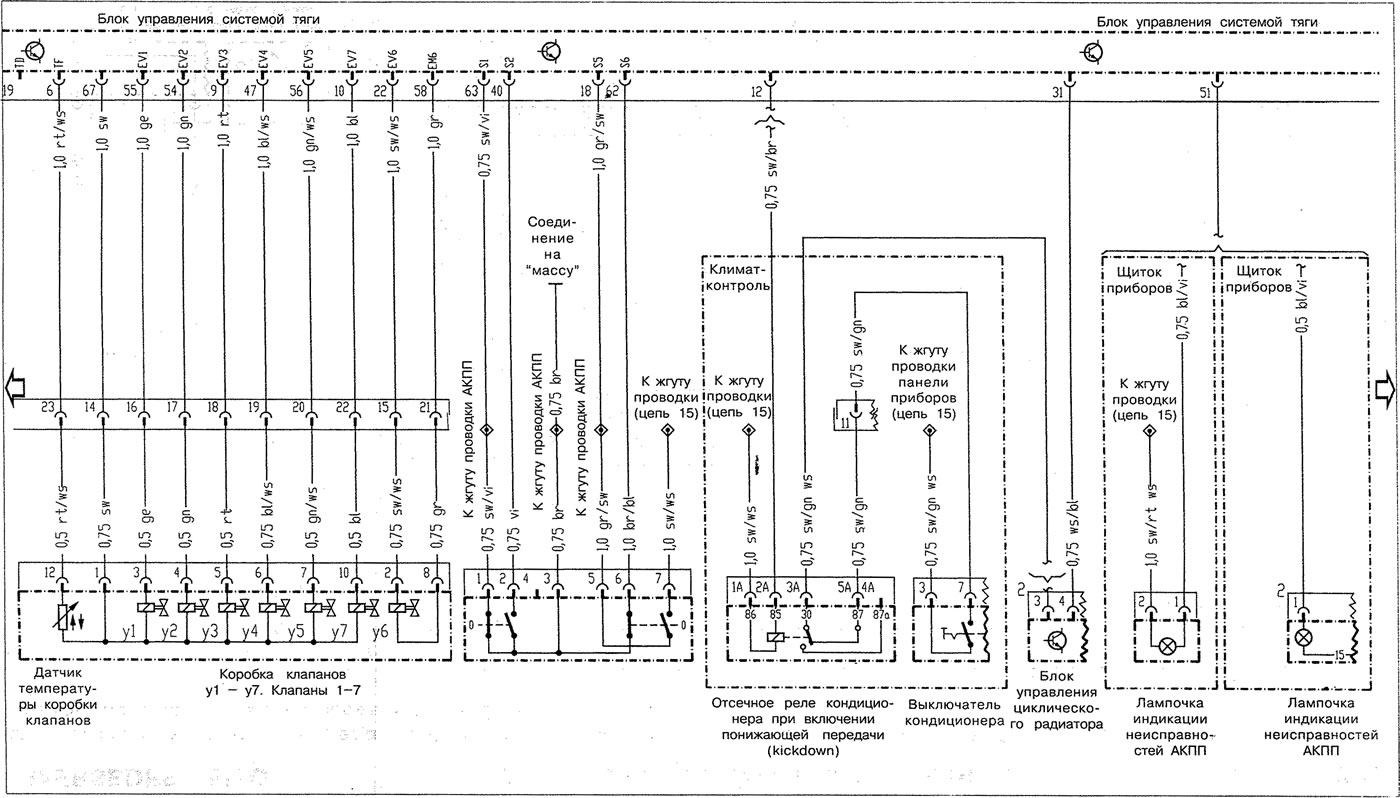

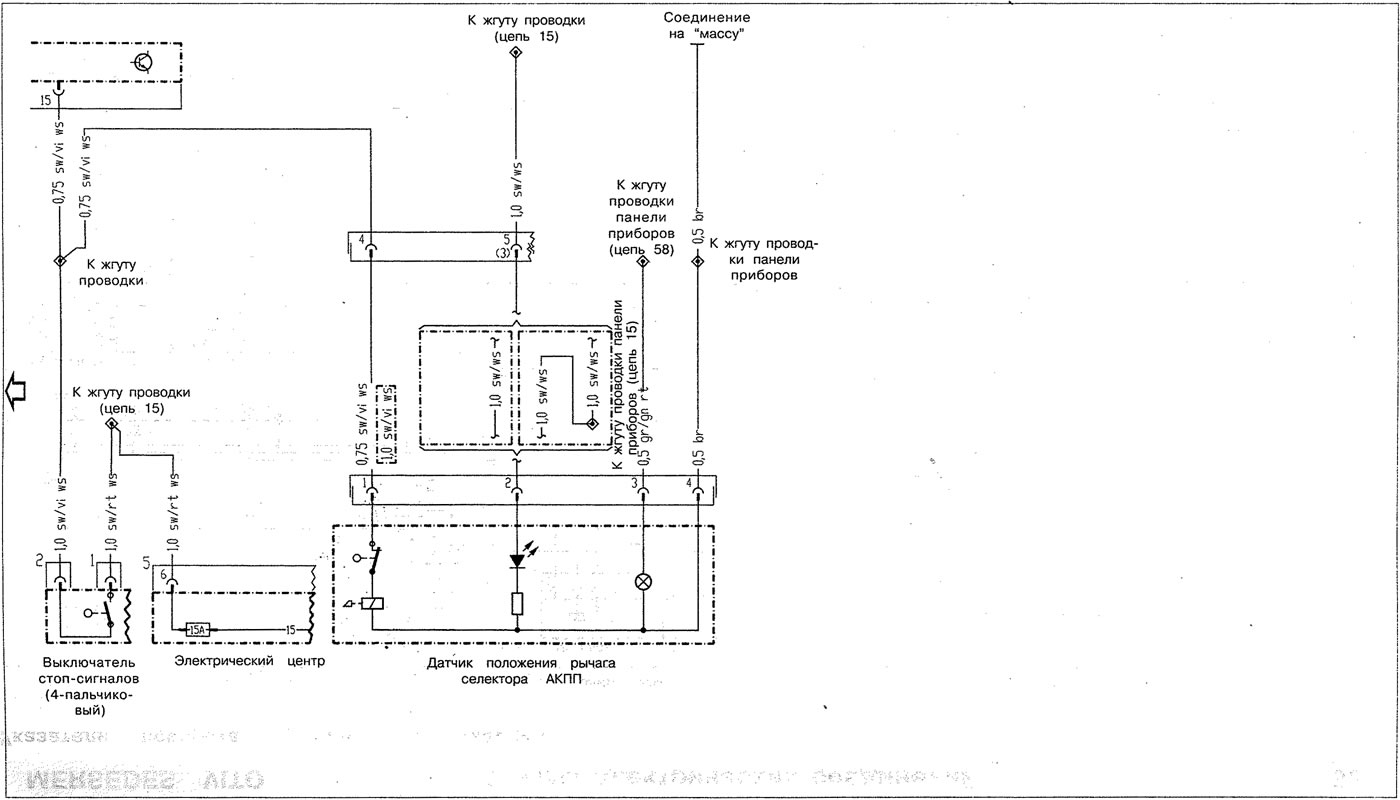

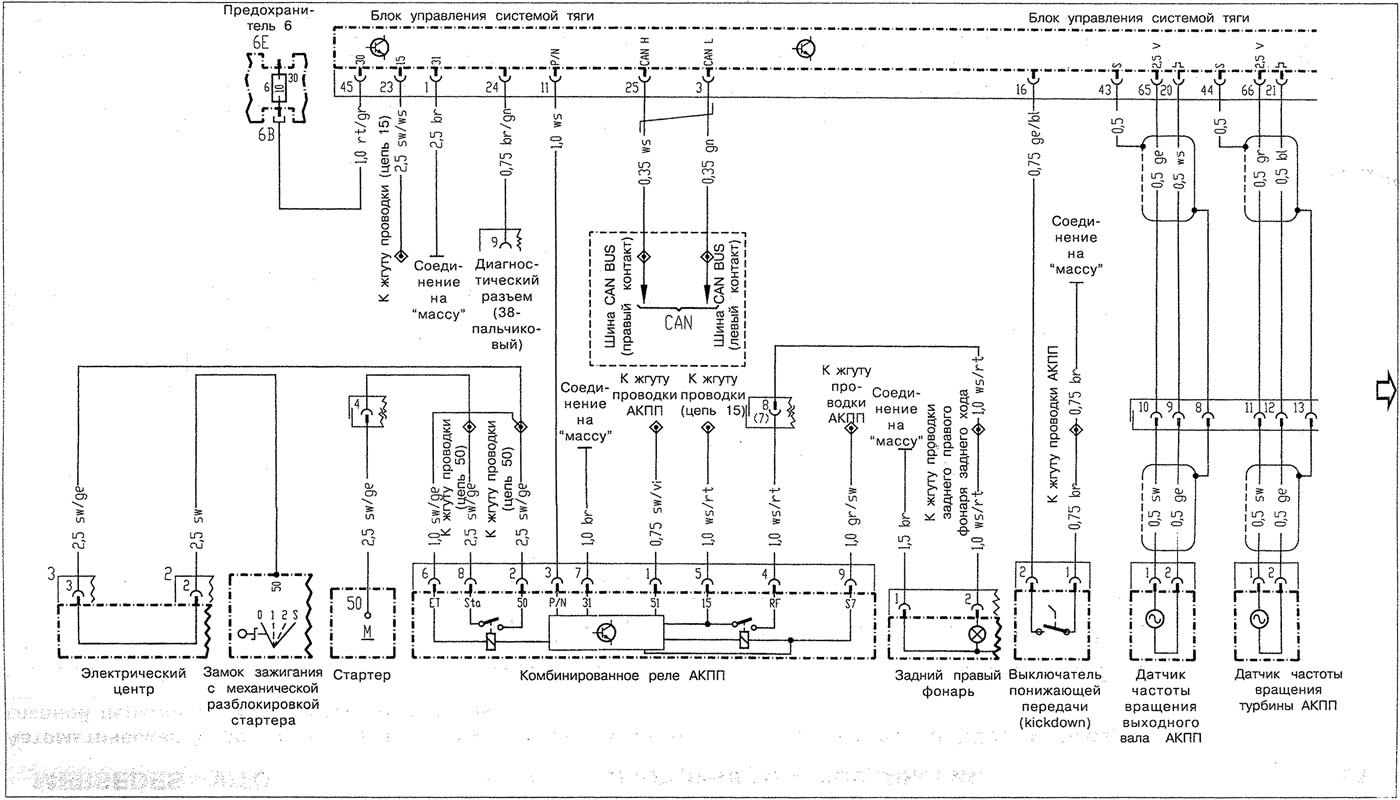

Automatic transmission 503.020/04 on vehicles with engine 104.900 and final drive ratio 4.92 on models 638.244
Открыть большую картинку в новой вкладке »
Открыть большую картинку в новой вкладке »
Открыть большую картинку в новой вкладке »
