Rear center console switches (Mercedes-Benz E-Class W124)

0

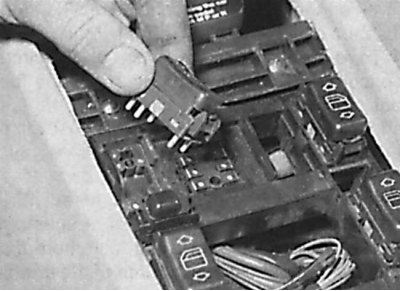

Removal the rear switch from the center console



Removal the rear switch from the center console


1. Remove the trim and foam inserts from the rear of the center console.

2. Carefully remove the gear shift lever cover from the center console.

3. Unscrew the screw located at the back of the remote control cover and remove the cover.

4. Release the clips and remove the corresponding switch from the switch block.

5. The switches are installed in the reverse order of removal.
This article is available at: russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian
The article has been verified: Levin Kirill Glebovich
