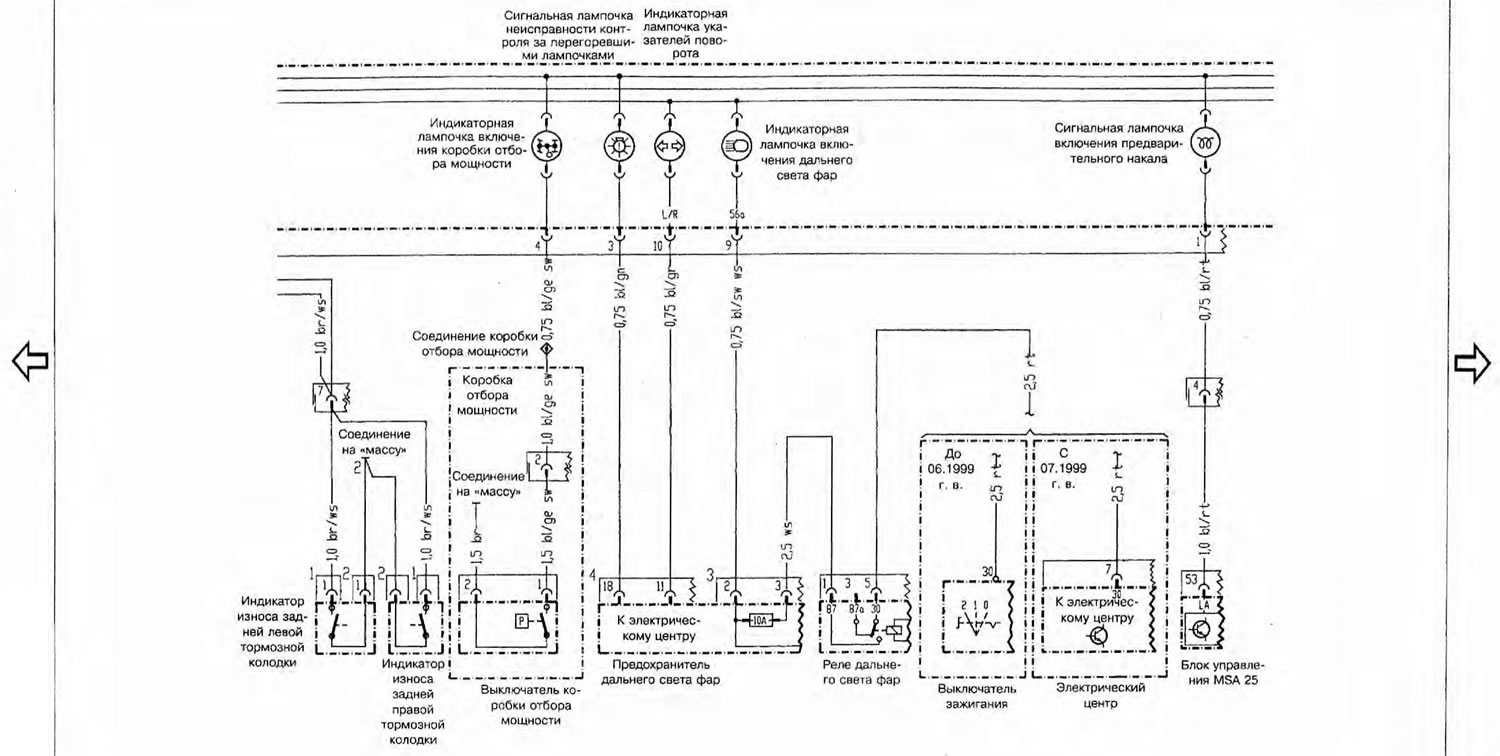

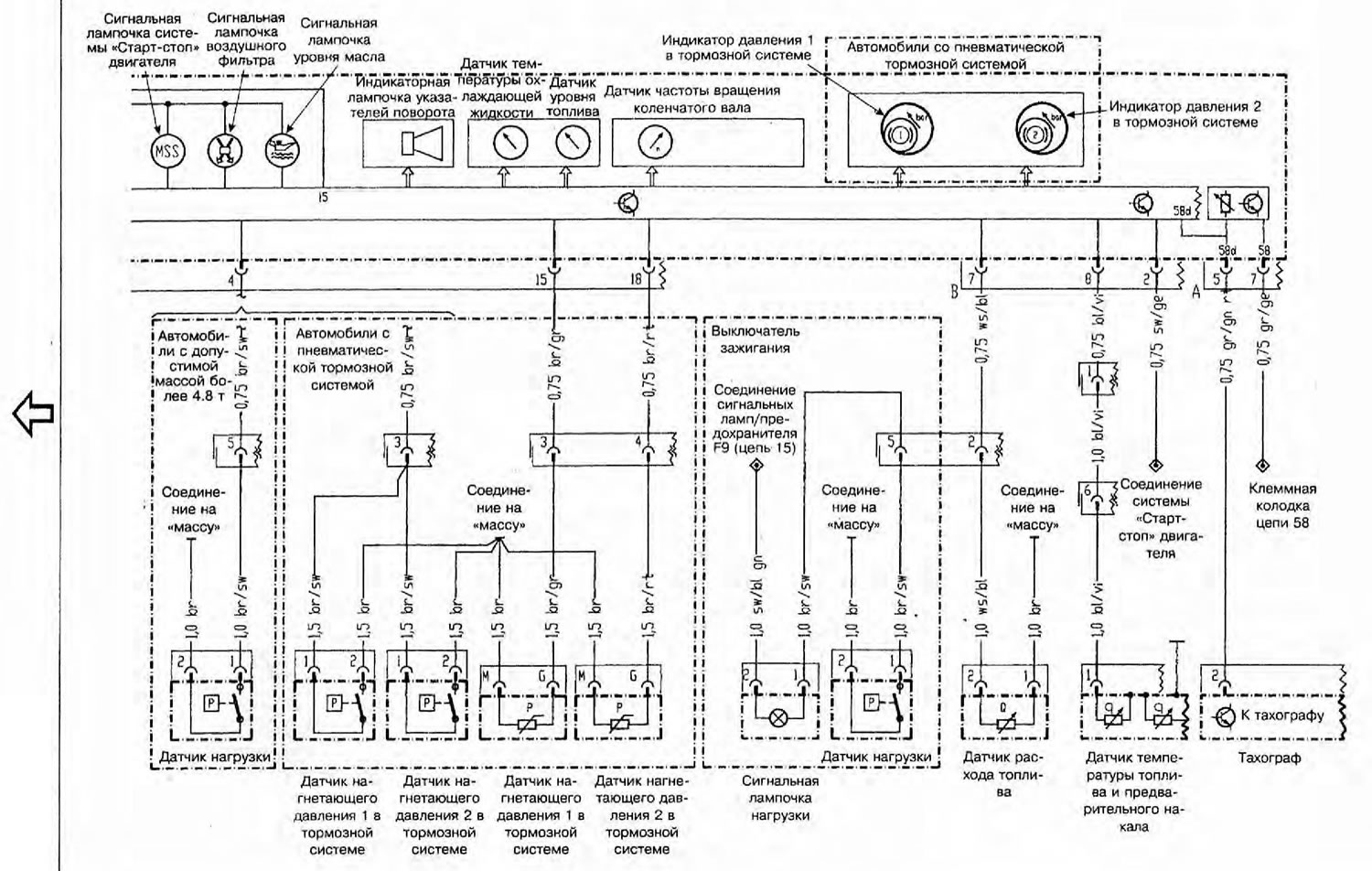

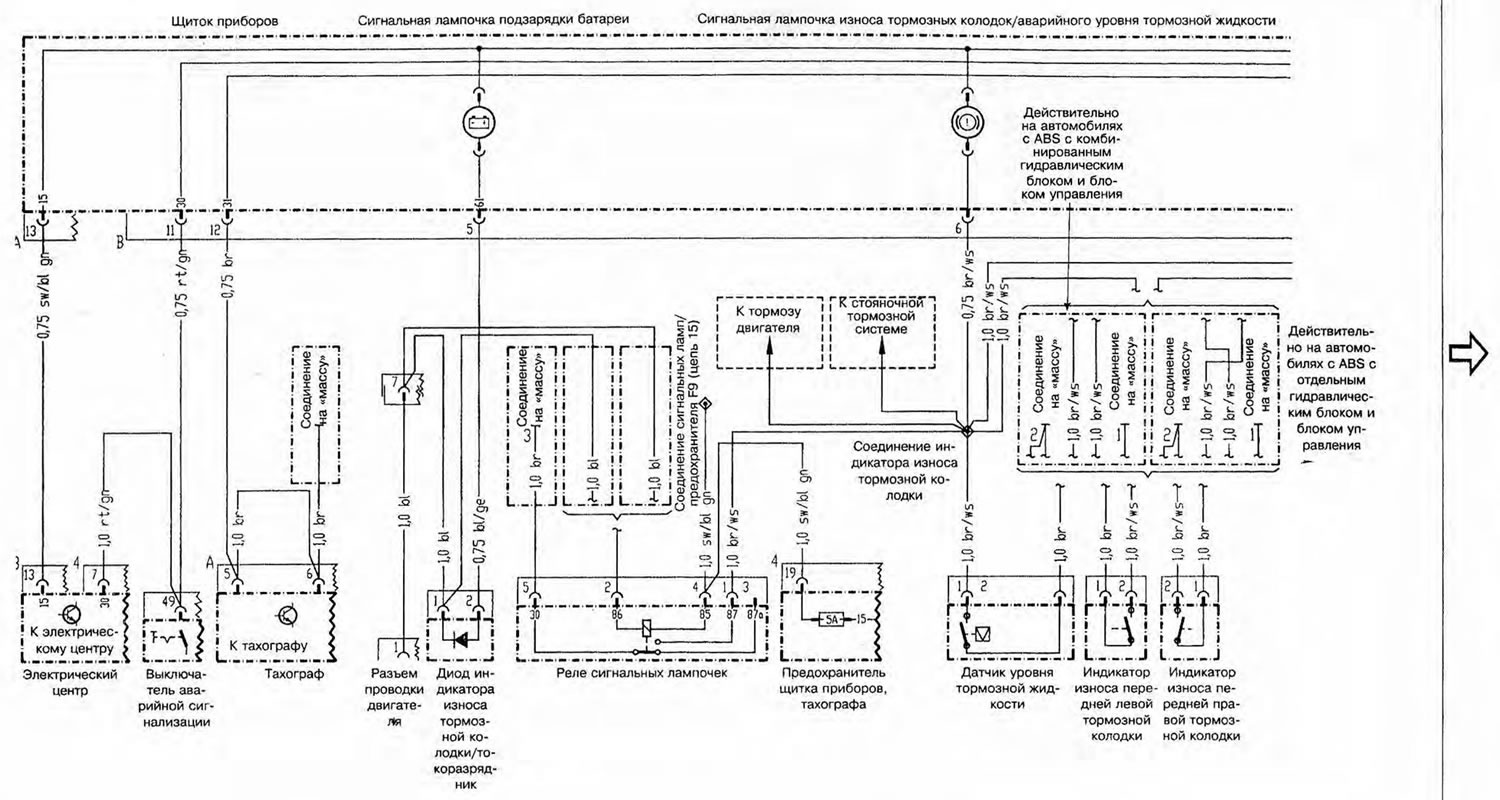

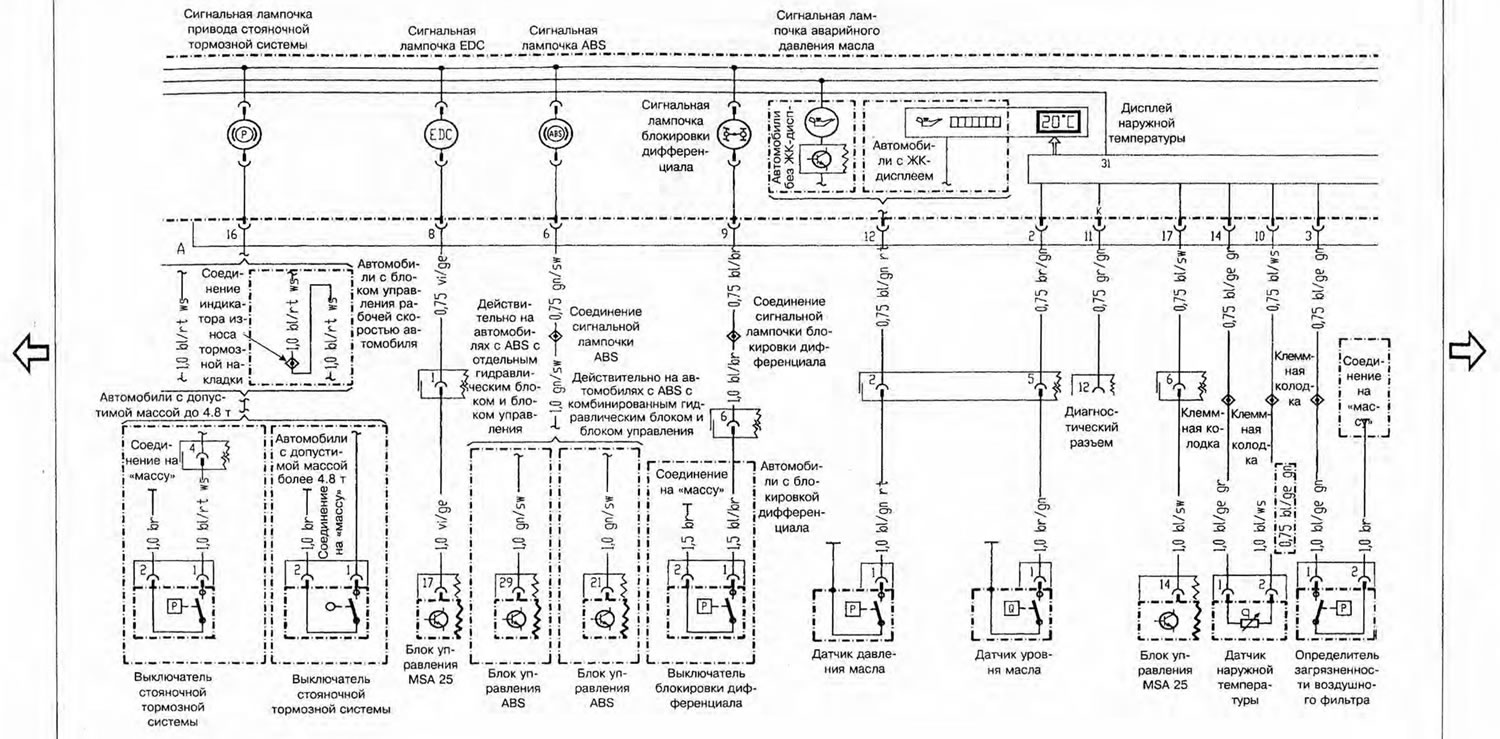

Instrument cluster for models 667, 668, 670 with 602 engines
How to read and use electrical diagrams is located here →
Instrument cluster for models 667, 668, 670 with 602 engines (Mercedes-Benz Vario 814)
How to read and use electrical diagrams is located here →
