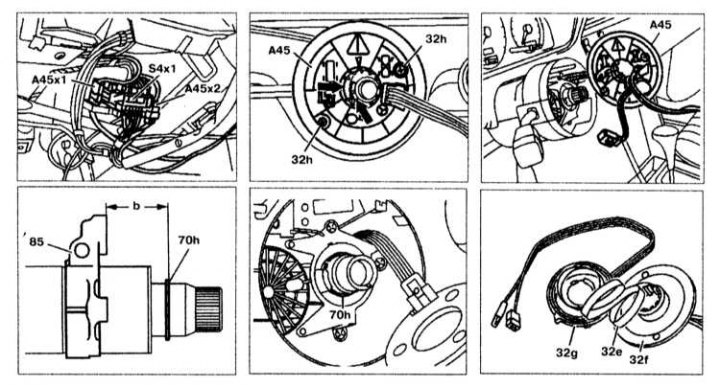

Removal and installation of a contact spring
Removing
1. Remove the steering wheel.
2. Remove the bottom cover of the panel of devices.
3. Disconnect the wiring connector from the airbag signal or contact spring (А45х1).
4. Disconnect the contact spring relay wiring connector (А45х2).
5. Turn away bolts of fastening (32h) contact coil (A45).
6. Carefully remove the coil (A45) from the pipe.
7. Make sure that the retaining ring is installed correctly (70h).
Examination
1. Check distance «b» between snap ring (70h) and bracket (85).
2. Check the contact coil (A45) for no damage.
Installation
Installation is carried out in the reverse order of removal.
