Models up to identification number 123446

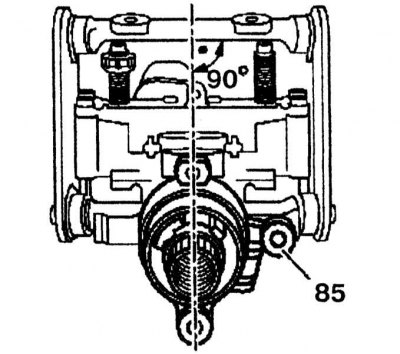

1. Fix the bracket (85) as shown in the illustration (73a) and install it with two holes at an angle of 90° to the installation position of the pipe.
2. Measure the distance "a" (nominal value is 21.5+0.5mm). Tighten the bolt (85a).
Models with identification number 123447

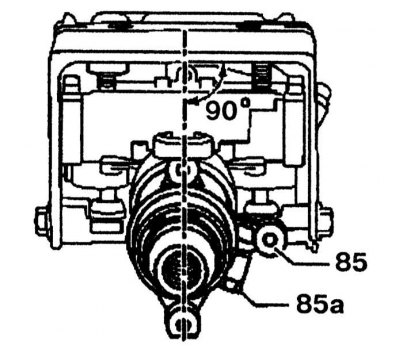

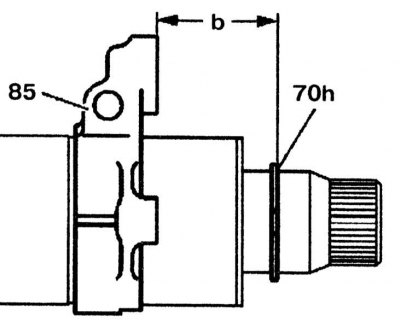

Fix the bracket (85) at 90° to the pipe, adjust the distance "b" between the bracket (85) and the locking ring (70n)
The distance "b" is determined by satisfactory operation of the signals and the airbag contact spring. Tighten the bolt (85a).
