Sequence of works
1. Remove the door trim.
2. Remove the insulating film from the door body.
3. Remove the outside door handle.
4. Lower the window.

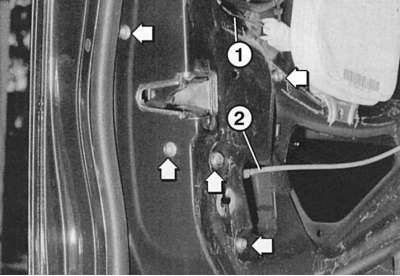

Fig. 11.32. Door lock mounting bolts (arrows): 1 – door lock opening lever drive; 2 – vacuum hose of the central locking, connected to the lock mechanism
5. Disconnect drive 1 (fig. 11.32) internal door lock opening lever.
6. Remove the vacuum hose 2 of the central lock from the lock.
7. If necessary, unscrew the lock cover.
8. Remove the TORX bolts from the end and body of the door.
9. Remove the lock from the hole.
10. When reassembling, first tighten the bolt from the end side of the door.
