Sequence of works
1. Remove the ashtray insert.
2. Remove the trim around the gear shift lever or lift it up at the front.
3. Remove the small storage drawer under the ashtray.
4. Remove the two screws at the top of the glasses box.
5. Remove the two Phillips head screws on the bottom sides of the ashtray housing.

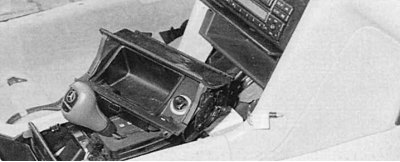

Fig. 10.33. When performing any work in the area of the center console, work carefully, as the sensitive surfaces are very easily scratched
6. Remove the ashtray body together with the glasses box (fig. 10.33). Disconnect the contact connector.
