Removing
1. Install the gearbox with the rotation converter up.
2. Turn the plastic pin of the rotation transducer 1/4 turn counterclockwise.
3. Screw on the knobs (065) on the rotation converter
4. Remove the rotation transducer.
Examination
The rotary converter housing has the following nominal overall dimensions:
Diameter, mm | 270 |
Height, mm | |
New build | 120.7 |
Limit value | 121.5 |
1. Install the rotary converter assembly with the secondary pump with the drive flange up on the measuring plate (05).

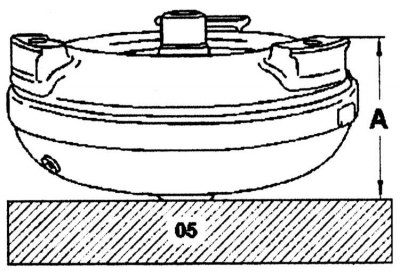

2. Measure the overall height «A» housing of the rotation converter. If the measurement result exceeds the limit value, replace the transducer.
Installation

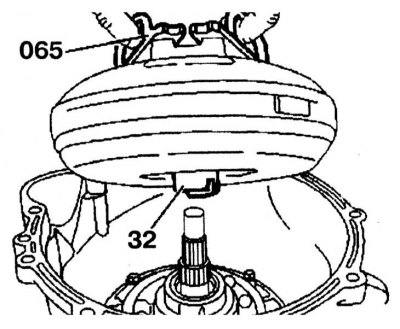

1. Lubricate the flange (32) with Molykote.
2. Install the plastic pin and turn it 1/4 turn clockwise.

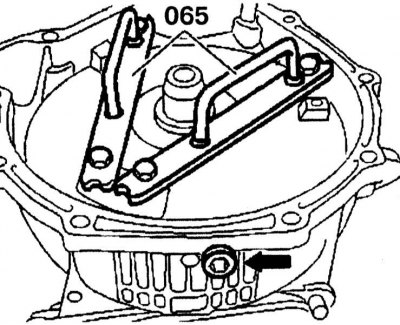

3. Unscrew the knobs (065) from the rotation converter.

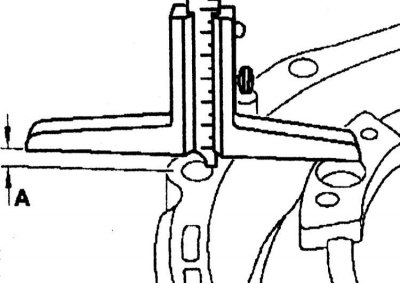

4. Use a caliper to measure the protrusion «A» rotation converter above the mating surface of the transmission housing. The nominal value is 9.6 mm.
