Diagram 3. Rear axle speed signal (GES) (engines 104, 111, 602, 604, 605, 606) (Mercedes-Benz E-Class W210)

0

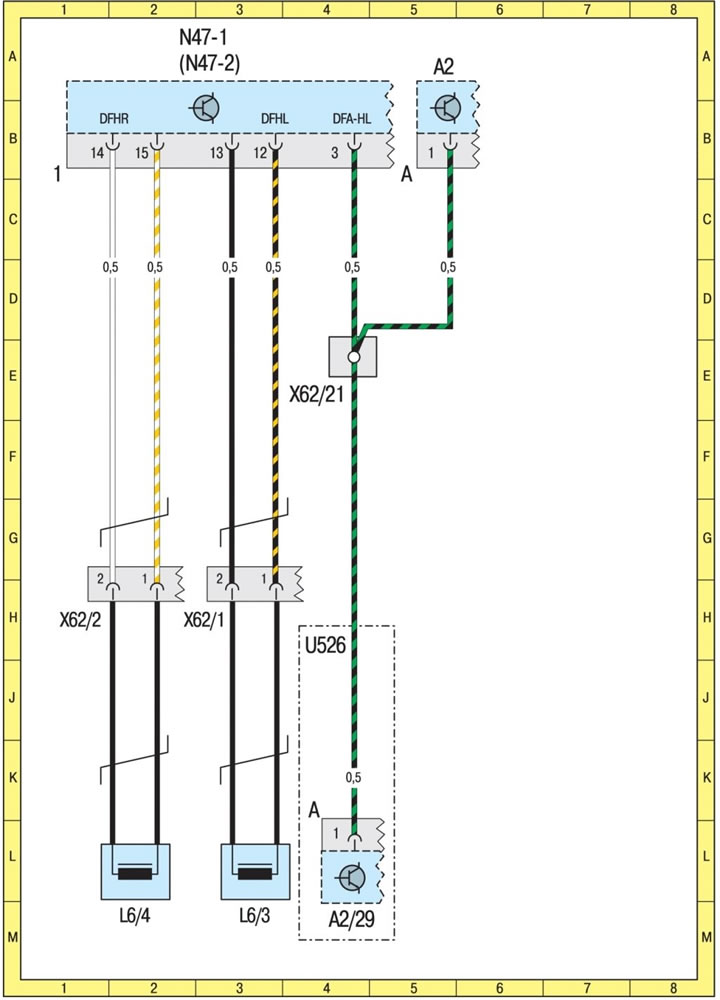

Rear axle speed signal (GES) (engines 104, 111, 602, 604, 605, 606)

Rear axle speed signal (GES) (engines 104, 111, 602, 604, 605, 606)

For a general description of electrical circuits, see here →

See the symbols on the electrical diagrams here →
