Handbrake — design description (Mercedes-Benz S-Class W126)

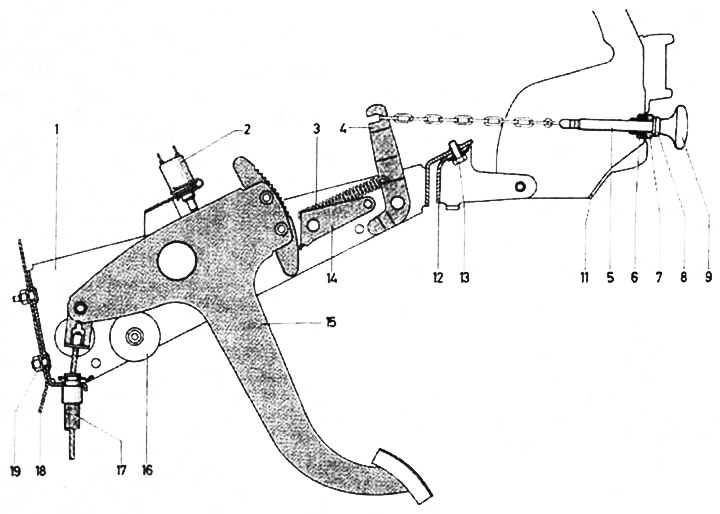

1. Bracket. 2. Indicator lamp switch. 3. Retractor spring. 4. Brake release lever. 5. Rod with chain. 6. Nut. 7. Decorative bolt. 8. Thrust washer. 9. Parking brake release handle. 11. Instrument cluster. 12. Bracket. 73. Fastening screw. 14. Lock. 15. Parking brake pedal. 16. Buffer ring. 17. Front parking brake drive cable. 18. Housing. 19. Fastening screw.

(Original source of information: «MERCEDESMAN.ru»)
