front doors
1 - Panel; 2 - Cover; 3 - Bolt; 4 - Protective sleeve; 5 - Driver's door
Installation and adjustment
1. Install the doors on the centering bolts while inserting the air lines and electrical wiring through the A-pillar.
2. Screw in the bolts and tighten them to 37 Nm.
3. Attach or loosen the protective sleeve and door retainer to the A-pillar.
4. Attach all driver door wiring to the floor wiring connector and secure with retaining tape. Place the panel on the floor. Remove the door stop and check the gap between the door and the body, adjust it if necessary.
5. Wrap bolts of fastening of an emphasis of a door, but do not tighten them.
6. Adjust the position of the driver's door so that the panel is flush with the front fender or lower by 1 mm. Check tailgate adjustment.
7. Adjust the door stop so that the door closes completely and adjust the door by moving the stop so that the door is flush with the rear door or 1 mm higher.
8. Tighten the door stop bolts to 20 Nm.

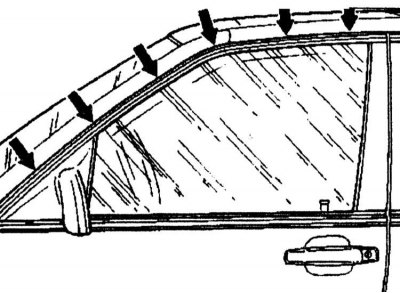

9. Check the door contour and install the window frame. Check the door for ease of movement.
