Ignition distributor installation details (Mercedes-Benz S-Class W140)

Ignition distributor installation details (m119.97 engines)

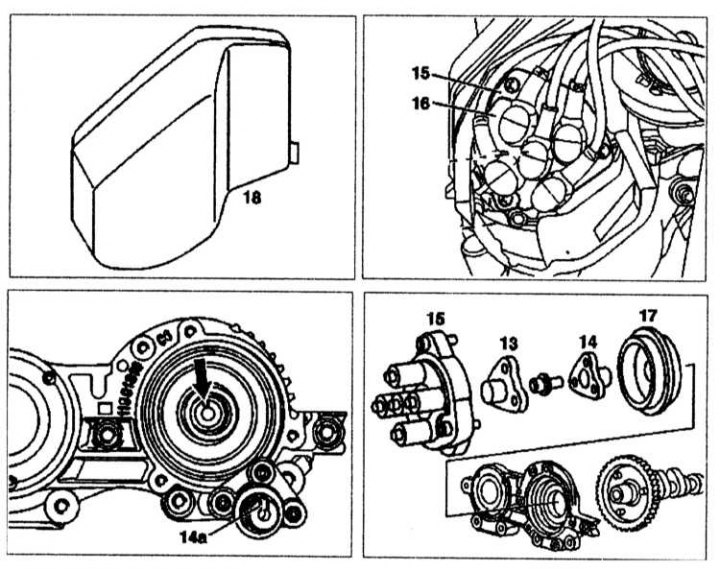

13 - Rotor (runner); 14 - Cam; 14a - Cam groove; 15 - Distributor cover; 16 - Shielding cover; 17 - Lid; 18 - Casing
