Layout of control lamps and signal indicators on models up to 10.93, issue.
1 - Bolts; 2 - Electronic panel; e4 - Fuel supply lamp; e8 - Instrument panel illumination lamp; e30 - Oil pressure lamp

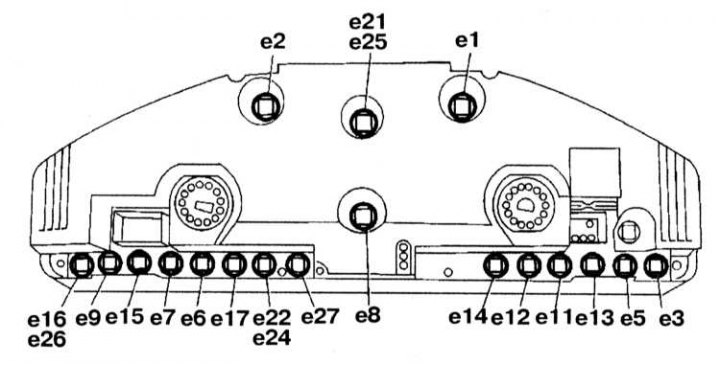

The layout of control lamps and signal indicators on models after 08.95, issue.
e1 - Left turn indicator lamp; e2 - Right turn indicator lamp; e3 - Indicator lamp for turning on the high beam headlights; e5 - Indicator lamp for recharging the battery; e6 - Lamp for indicating brake lining wear; e7 - Signal lamp for low oil level / parking brake; e8 - Instrument panel backlight indicator lamp; e9 - Signal lamp for unfastened seat belts; e11 - Low coolant level warning light; v12 - Signal lamp for low level of impellent oil; e13 - Signal lamp for low fluid level in the washer reservoir; e14 - Indicator lamp for monitoring burnt out lamps; e15 - SRS malfunction warning light; e16 - Pre-glow indicator lamp; e17 - ABS malfunction warning light; e21 - Signal lamp ASR; e22 - ASR malfunction indicator lamp; e24, e27 - ASD malfunction indicator lamp; e25 - Signal lamp ASD (MIL); e26 - indicator lamp «Check Engine»

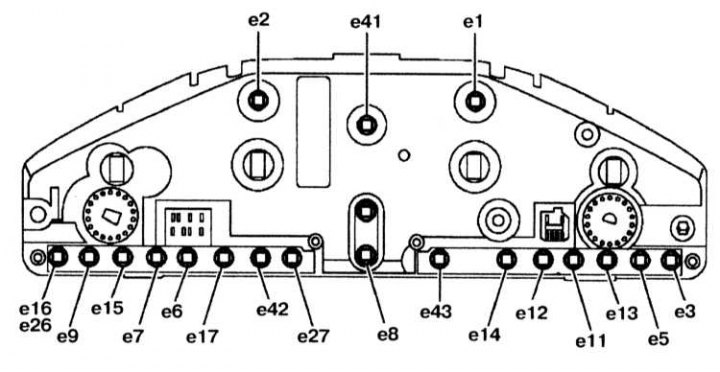

The layout of control lamps and signal indicators on models from 09.95, issue.
e1 - Left turn indicator lamp; e2 - Right turn indicator lamp; e3 - Indicator lamp for turning on the high beam headlights; e5 - Indicator lamp for recharging the battery; e6 - Lamp for indicating brake lining wear; e7 - Signal lamp for low oil level / parking brake; e8 - Instrument panel backlight indicator lamp; e9 - Signal lamp for unfastened seat belts; e11 - Low coolant level warning light; e12 - Signal lamp for low engine oil; e13 - Signal lamp for low fluid level in the washer reservoir; e14 - Indicator lamp for monitoring burnt out lamps; e15 - SRS malfunction warning light; e16 - Pre-glow indicator lamp; e17 - ABS malfunction warning light; e26 - indicator lamp «Check Engine» (MIL); e27 - ASD malfunction indicator lamp; e41 - Signal lamp ESP; e42, e43 - ESP malfunction indicator lamp
