Models with code 217a "Self-leveling rear suspension with ADS" and code 480 "Rear suspension clearance control".
Removal

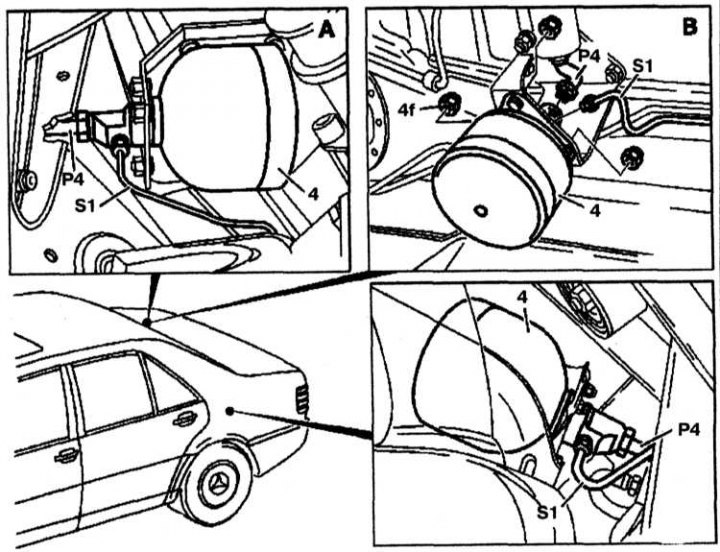

Rear Suspension Hydraulic Drive Pressure Accumulator Installation Details
A - Battery on the right on models with code 480
B - Location of the right battery on models with code 217a
1. Drain the fluid from the system.
2. Disconnect the delivery pipes (S1), (P4) from the spring drive.
3. Remove the exhaust pipe from the brackets on the bottom.
4. Remove both rear wheel arch guides.
5. Unscrew the nuts (4f) and remove the battery (4).
Installation
Installation is carried out in the reverse order of removal.
