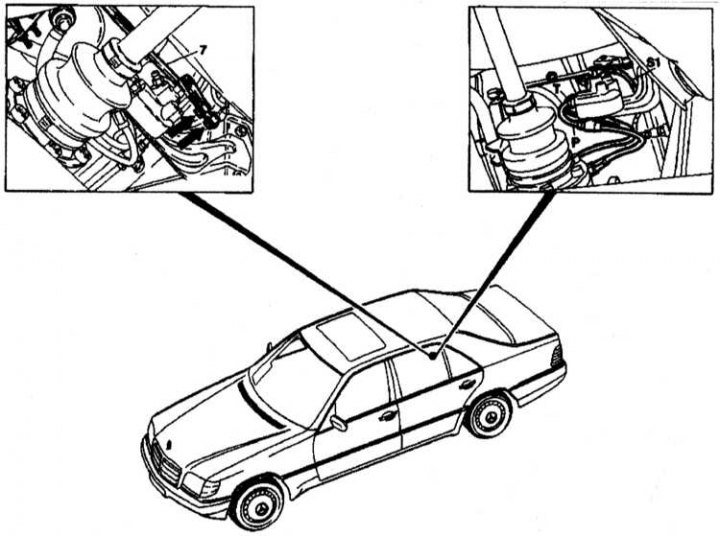

Rear suspension clearance adjuster
P, S1 - Discharge pipeline; T - Return pipeline; 3 - Rear suspension clearance regulator; 7 - Connecting rod
Removal

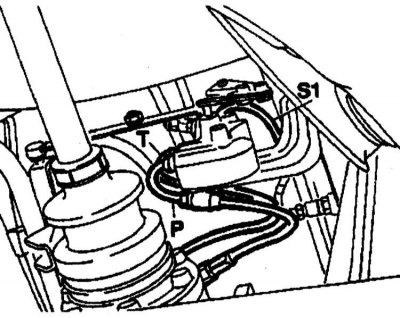

1. Disconnect the pressure (P) and (S1) and return (T) pipes.

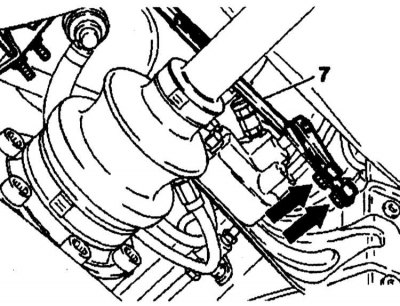

2. Unscrew the two bolts (arrows) and disconnect the connecting rod (7).

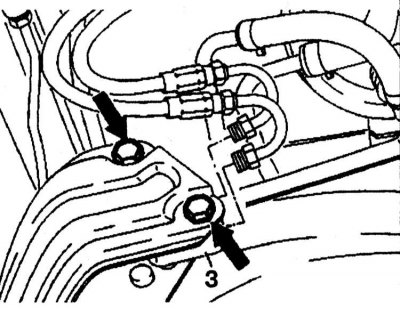

3. Unscrew the two bolts (arrow) and remove the regulator (3) from the bracket.
Installation
Installation is carried out in the reverse order of removal.
