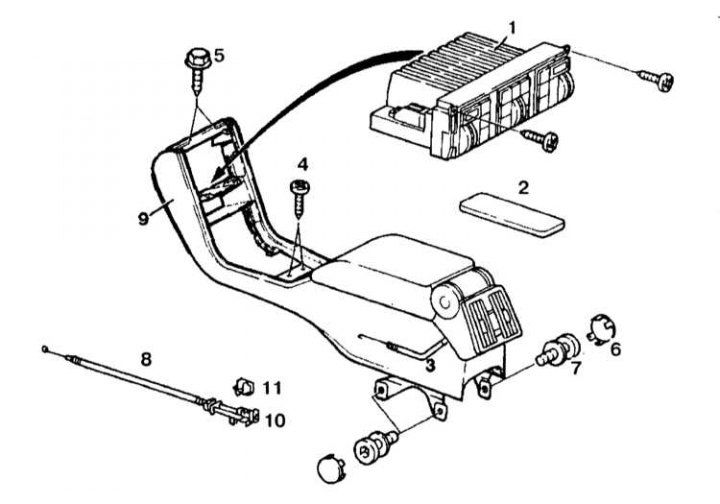

Center console installation details
1 - Control unit; 2 - Insert; 3 - Cable for opening the rear deflector; 4, 5, 7 - Bolts; 6 - Lid; 9 - Center console; 10 - Plastic retainer; 11 - Metal retainer
Removal

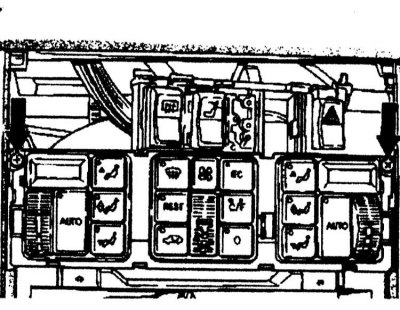

1. Loosen the adjustment unit mounting bolts. Disconnect the wiring connector and remove the control unit.

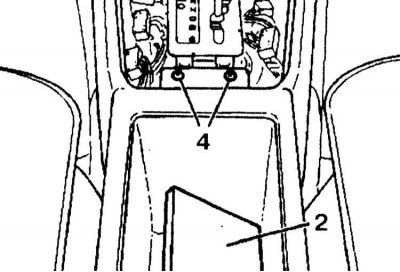

2. Remove the insert (2) and unscrew the bolts (4).

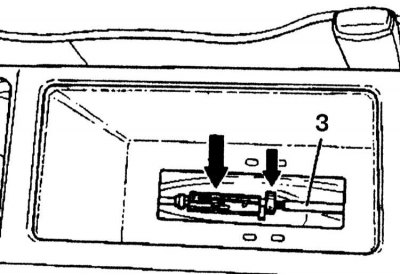

3. Unhook the rear deflector control cable (3).

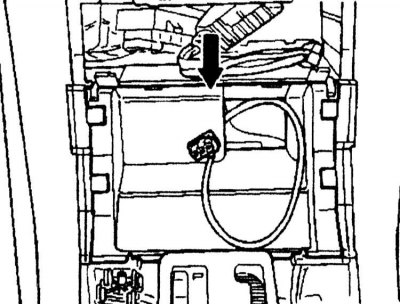

4. Remove the body trim.

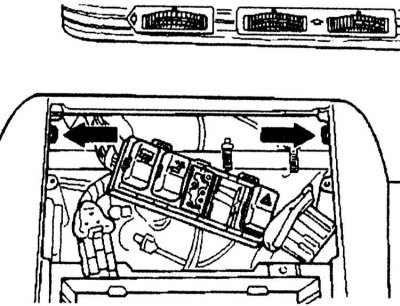

5. Remove the 8mm bolts.

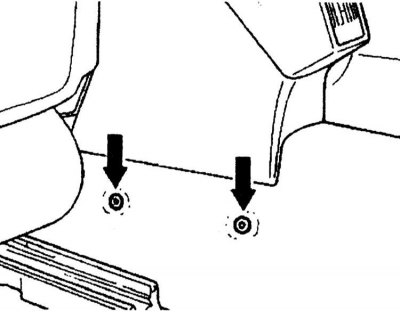

6. Move the front seats forward. Remove the left and right covers on the tunnel. 7. Remove the bolts on both sides of the tunnel.
(Original article is on the portal: Mercedesman.ru)

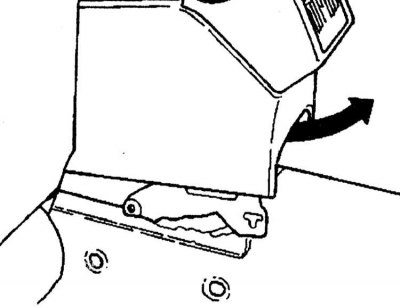

8. Lift the console from the rear, move it forward and remove it.
Installation
Installation is carried out in the reverse order of removal.
