Driver's seat installation details
1, 2, 3, 5, 6, 7 — Mounting bolts
4 — Lid
8, 9 - Guides
Rear Seat Installation Details
1 - Bottom cushion
2 - Side protector
3, 4, 5 - Covers, seat back
Driver's seat
Removal
1. Move the seat fully forward.

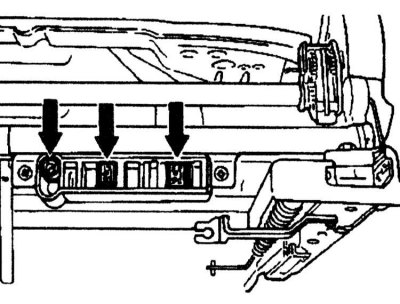

2. Unscrew the three bolts (arrows) securing the guides at the rear.
3. Remove the rear cover (arrow) on the seat frame.
4. Unhook the cable from the seat at the back and unscrew the bolt that secures it.
5. Press out the cover (arrow) and unscrew the seat belt mounting bolt. Remove the seat belt end tensioner.
6. Move the seat back as far as it will go. 7. Remove the front guide mounting bolts.

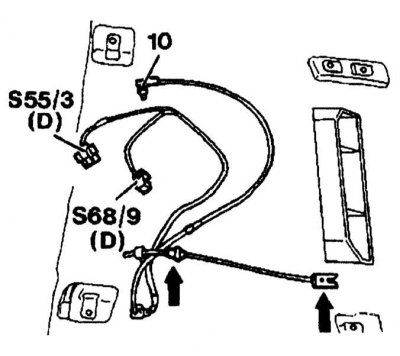

8. Disconnect the vacuum tubes and wiring connectors from the front tie strap. Cut the tie strap.
 |
 |

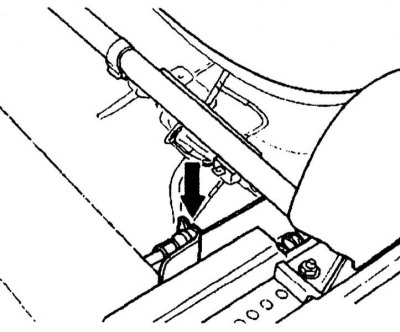

9. Unhook the cable from the front of the seat frame and remove it.
10. Remove the driver's seat and install it with the bracket on the surface.

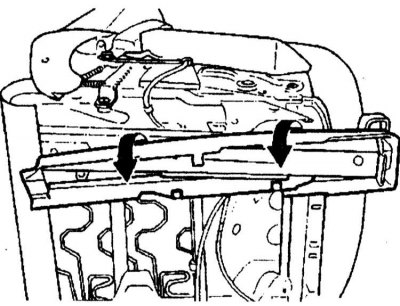

11. Remove the cover on the seat guide by turning it inward.
Installation
Installation is carried out in the reverse order of removal.
