- Fuel tank capacity - 96 l
- Reserve - 13 l
Fuel pump 280 S - diaphragm pump with mechanical drive
The vacuum when measured at the pump inlet during starter rotation is 250 - 350 mm Hg.
The pressure at the pump outlet when rotating with the starter is 0.25 - 0.38 bar
- engines with fuel injection - electric pump from Bosch No.0 580 970 002 and 0 580 464 005 at idle speed and voltage of at least 12 V
Pump pressure
Measurement point - before the pressure regulator in the ring pipeline, pressure - 2.010.1 bar
Pump performance -
Measurement point - drain pipe from the pressure regulator
Productivity - 1 l in 30 sec
Carburetor (280 S engine)
Carburetor designation - Solex 4A1 carburetor
Cold start device with or without TN starting device

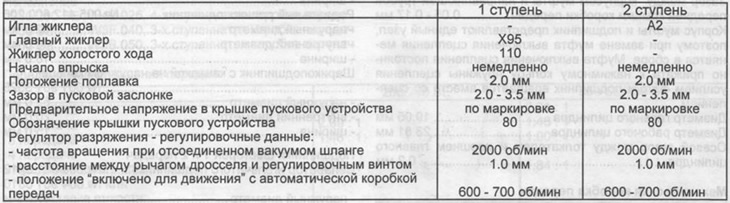

Complete set of carburetor with TN-starter

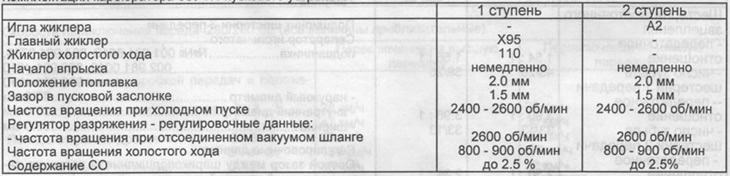

Complete set of carburetor without TN-starter
