Note. Checking the geometrical parameters of the suspension should be carried out on a special stand in the conditions of a car service workshop.

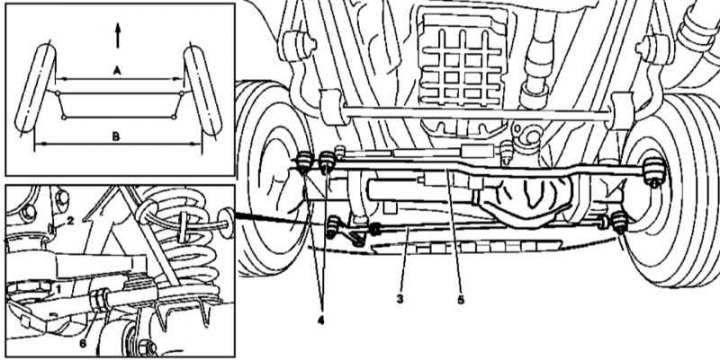

Checking and adjusting the convergence of the front wheels
1 - Label on the steering shaft; 2 - Label on the casing of the steering mechanism; 3 - Tie rod; 4 - Coupling clamps; 5 - Connecting rod; 6 - Lock nuts
1. Make sure all necessary conditions are met (see Section Vehicle wheel alignment - general information).
2. Make sure the steering wheel and steering gear are in the center position - long mark (1) on the steering shaft must be aligned with the mark (2) on the steering gear cover. If necessary, adjust the position of the steering wheel by moving it no more than one tooth.
3. Lock the steering wheel in the center position and install the lock, if necessary, placing a protective pad under it.
4. Loosen locknuts (6) on transverse traction (3) and clamps (4) on connecting rod (5).
5. Adjustment of the convergence value is made by rotating the adjusting segment of the connecting rod located between the tie-down collars (5) and, if necessary, a tie rod end (3), which must first be released from the steering arm using a suitable puller.
6. Having achieved the desired result, tighten the locknuts (6) and clamps (4).
