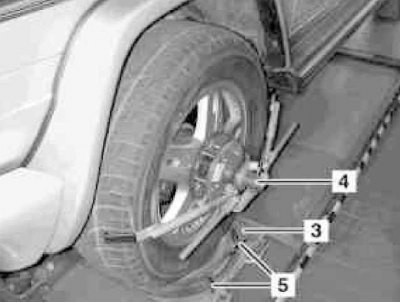

Checking the value of the limit angle of rotation of the wheel is carried out on a special overpass equipped with rotary disks (3)
Adjustment of the value of the limit angle of rotation of the wheel
1 - Locking screw
2 - Locknut
The check is carried out on a special overpass equipped with rotary disks.
The larger the front wheels are installed on the car, the less should be the limit value of their rotation. Remember that the distance from the edge of the tire of the wheel turned to the stop to the corresponding trailing arm of the front suspension should be about 2 cm.
Loosen locknut if necessary (2) and turning the locking screw (1) make the required adjustment. Don't forget to tighten the locknut when finished (2).
