Rear air shock absorber (Mercedes-Benz S-Class W220)

0

Contents: Removal ↡ Installation ↡

Removal

1. Remove the decorative panel in the trunk.

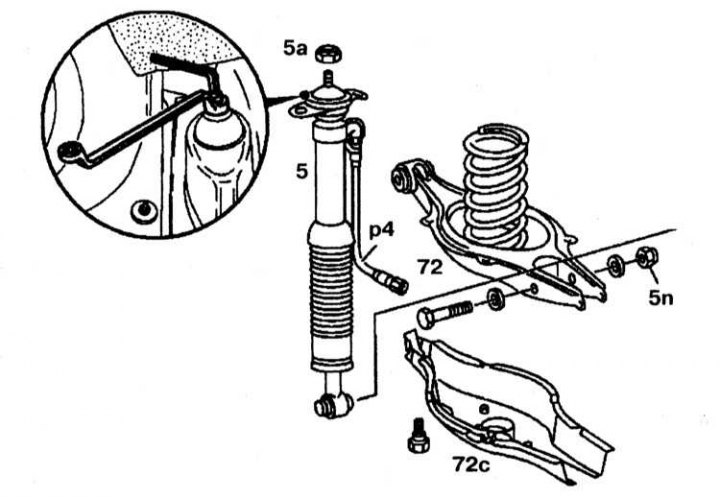

2. Unscrew the upper shock absorber mounting nut.

2. Unscrew the upper shock absorber mounting nut.

3. Disconnect the discharge line P4.

4. Remove the lower arm cover 72c.

5. Disconnect and remove strut 5 from lower arm 72.

Installation

Installation is carried out in the reverse order of removal. Replace nut 5n.

This article is available at: russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian

The article has been verified: Khromov Roman Mikhailovich
