Alternator installation details on 6-cylinder petrol engines
1, 2 - Wires; 3 - Bolts; G2 - Generator
Alternator installation details on 8-cylinder petrol engines
1, 2 - Wires; 3, 4 - Bolts; 5 - High pressure pipeline; G2 - Generator
Alternator installation details on 12-cylinder petrol engines
1, 2 - Electrical wires; 3, 4 - Bolts; G2 - Generator

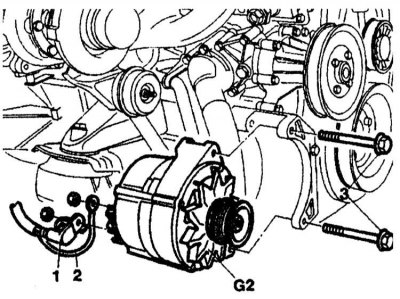

Details of installation of the generator on diesel engines
1, 2 - Electrical wires; 3 - Bolt; G2 - Generator
Voltage Regulator Installation Details
1, 2 - Wires; 3, 6 - Bolts; 4 - Cover; 5 - Clamps; 7 - Regulator
The voltage regulator is part of the generator assembly as a separate unit.
