Front fenders and wheel arch protection liners — installation details (Mercedes-Benz S-Class W140)

Front Fender Installation Details
1, 2, 4, 5, 6, 7, 8, 14 - Bolts; 3 - Panel; 9 - Sponge seal; 10 - Front wing; 11 - Gasket; 12 - Bracket; 13 - Rivet

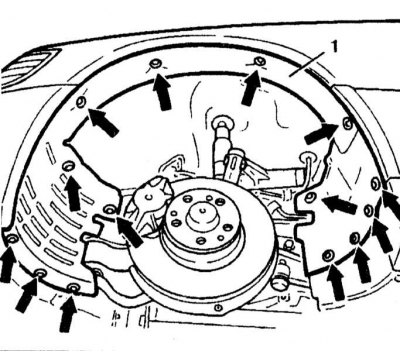

Front wheel arch protection liner mounting nuts
1 - Locker
Arrows - Fastening nuts

Rear wheel arch protection liner mounting nuts
1 - Locker
Arrows - Fastening nuts
