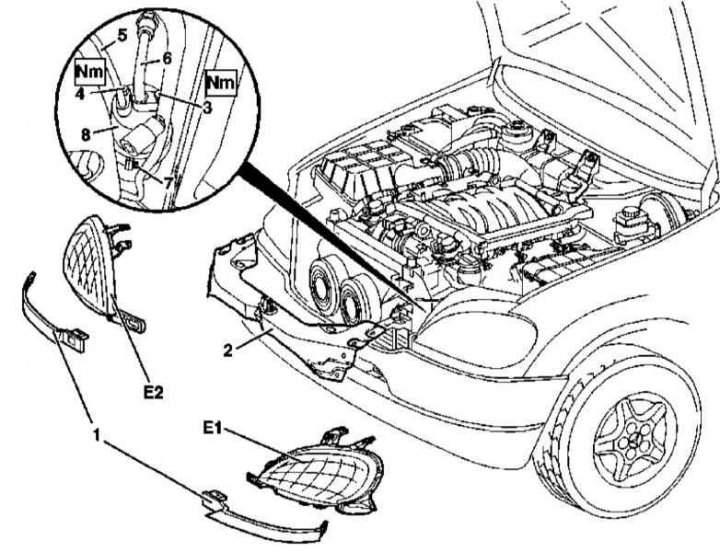

Details of installation of the receiver-dryer A/V
1 - Facing pads; 2 - Upper front transverse beam of the frame; 3 - Bolt; 4 - Bolt; 5 - Refrigeration line; 6 - Refrigeration line; 7 - Bolt (TORX); 8 - Receiver-drier; E1 - Left block headlight; E2 - Right block headlight
Attention! All sealing elements must be replaced without fail.
1. Details of the installation of the receiver-drier are shown in the illustration, to which all references in the text refer.
2. Remove the upper front cross member of the frame (2).
3. On models 163.113, remove the charge air path cooler (see Section Removal and installation of a radiator of system of cooling).
4. On models 163.113, remove the MAF sensor on the left behind the cooler of the charge air path (between cooler air sleeve and engine).
5. In the conditions of a car service workshop, discharge the A/C system.
6. Remove the screw (3) refrigeration line fittings (6) to expansion valve and screw (4) fastening line (5), going from the condenser to the receiver-drier (8). Remove both refrigeration lines.
7. Loosen the bolt (7) clamp and remove the receiver-drier (8).
8. Installation is carried out in the reverse order - refueling of the air conditioning system must be carried out in a car service workshop.
